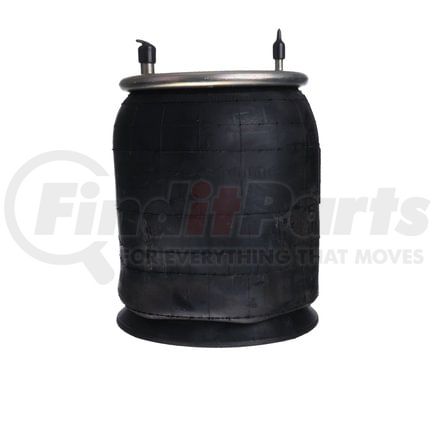

Meritor FS9394 - AIR SPRING
$24249
MSRP: $486.25
Save: $243.76
In stock
limited availability at this price!
. Learn more
MERITOR part description
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Fruehauf UCD-9393-2 (if bolt is removed, this part can replace the UCE-9393-1); Suspensions Inc. 200041; Supercedes 9241 |
| Bead Plate Diameter Bottom | 10.30 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Collapsed Height | 9.20 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 25.60 in. |
| Part Diameter | 10.12 in. |
| Piston Height | 7.40 in. |
| Stud Configuration-Bottom | 4 |
| Stud Configuration-Top | 2 |
| Stud Mount-Bottom Flat | Flat |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-000 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
Product Description
AIR SPRING
Product Attributes
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Fruehauf UCD-9393-2 (if bolt is removed, this part can replace the UCE-9393-1); Suspensions Inc. 200041; Supercedes 9241 |
| Bead Plate Diameter Bottom | 10.30 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Brand | Meritor Genuine |
| Collapsed Height | 9.20 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 25.60 in. |
| Pallet Quantity | 18 |
| Part Diameter | 10.12 in. |
| Piston Height | 7.40 in. |
| Product Category | Genuine OE Product |
| Stud Configuration-bottom | 04 |
| Stud Configuration-top | 02 |
| Stud Mount-bottom Flat | Flat |
| Stud Mount-top Flat | Stud |
| Weight | 17.74 |
MERITOR FS9394 Cross Reference
We have 21 alternatives for the FS9394 by MERITOR:
- GOODYEAR 1R12142
- FIRESTONE W013589394
- CONTITECH 91019P321
- NEWAY 57009130
- HENDRICKSON TURNER B8988
- BWP M3546
- RIDEWELL 1003589394C
- SIRCO BRAKE AS9394
- WATSON CHALIN AS0142
- GOODYEAR 1R12261
- FIRESTONE 1T15M9
- CONTITECH 91019P358
- NEWAY 57009394
- HENDRICKSON TURNER S8988
- FIRESTONE 9130
- CONTITECH 91019P383
- GOODYEAR 1R12278
- FIRESTONE 9394
- GOODYEAR 1R12279
- GOODYEAR 1R12281
- GOODYEAR 1R12905
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
