(888) 312-8812 Login SignupHORTON 791125 HTS ADV CLUTCH-REMAN,4 GRV,07.50,POLAR EXTREME
Tap to view 3 more
MSRP: $1,959.17
$1,09099
Save $868.18
+$969.69 core deposit
Total price w/ core: $2,060.68
In Stock
Get it by Thursday, Feb 5

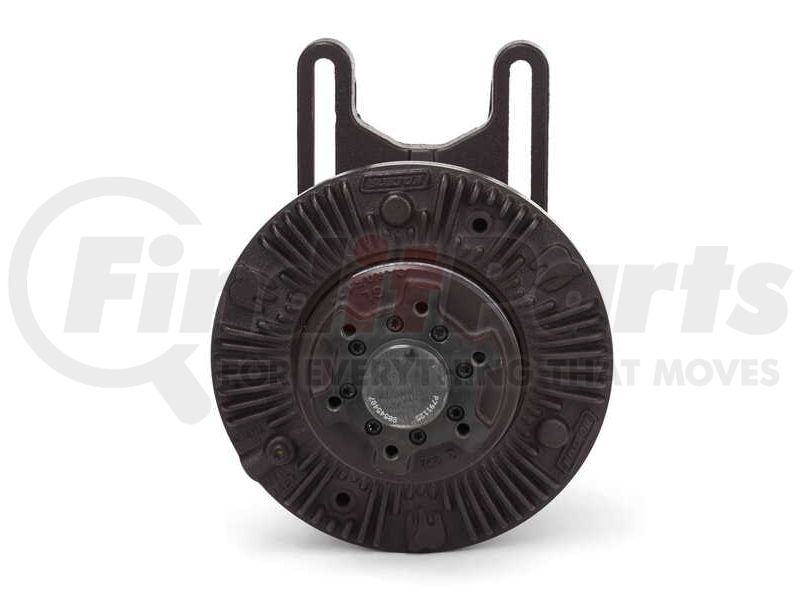

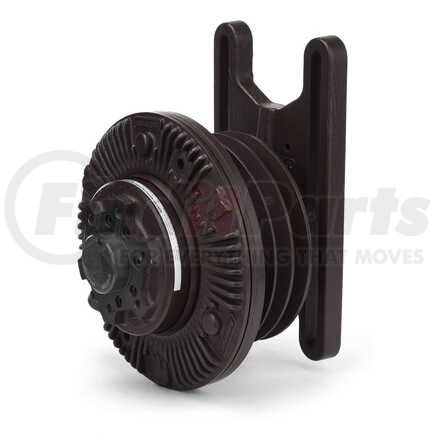

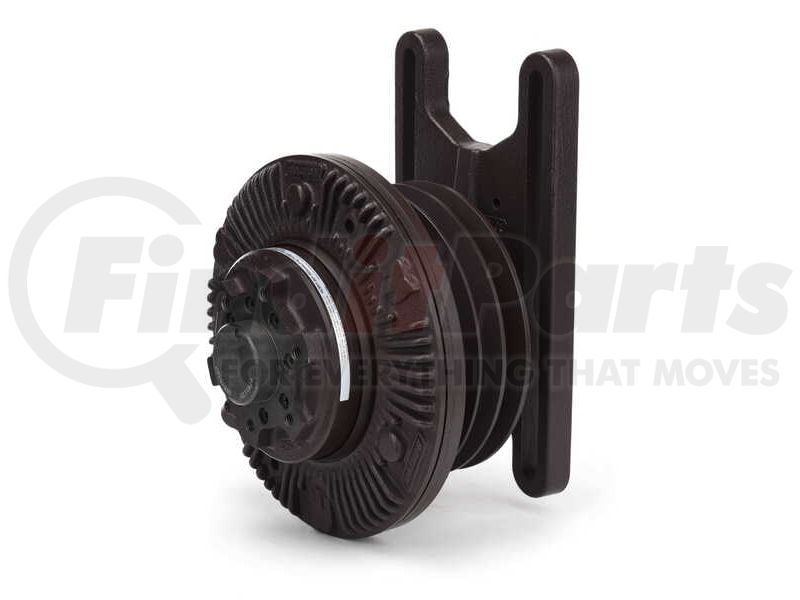

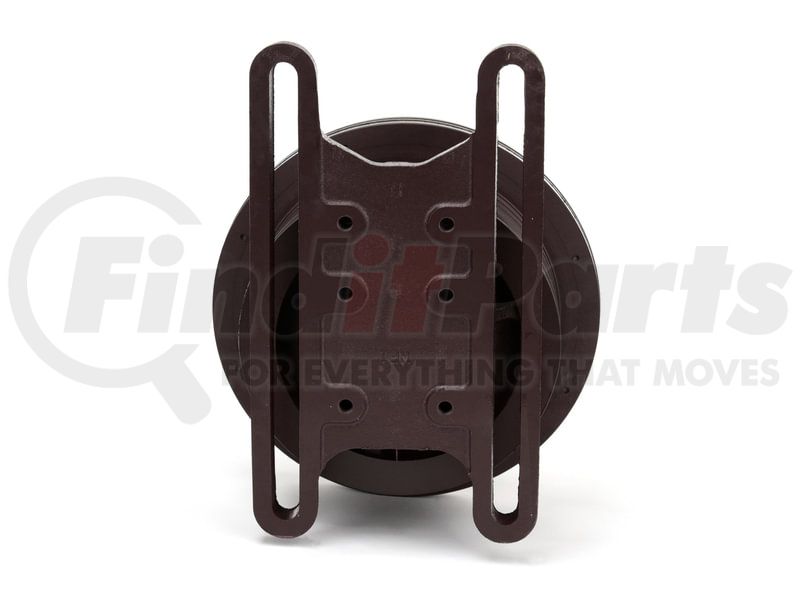

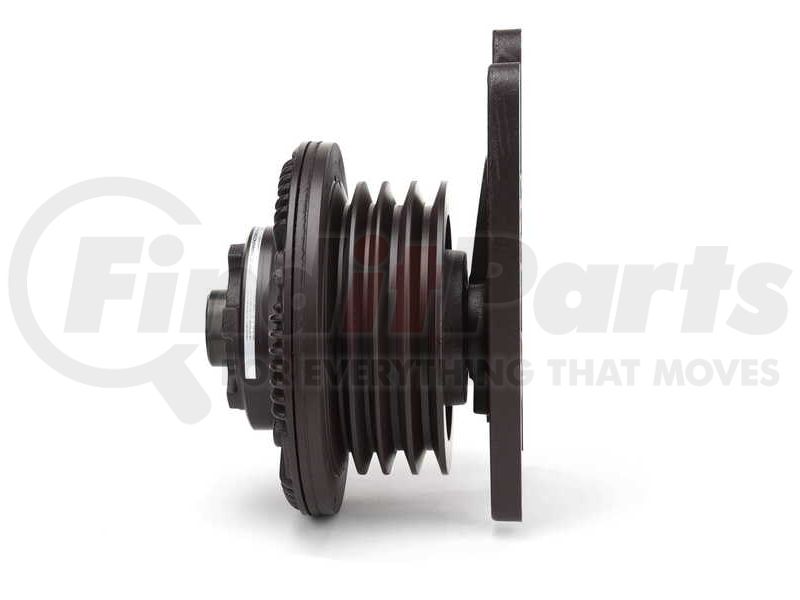

HORTON 791125 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Application Summary
FREIGHTLINER, KENWORTH, PETERBILT, VOLVO, WESTERN STAR, INTERNATIONAL
Features & Benefits
- State-of-the-art dust seal extends fan drive life
- Premium Friction Liner for longer lasting performance
- Patented System Sentry Fuse for advanced fan drive protection
- Superior Hub Bearing provides extended line and moisture resistance
- Rebuilt to the same as new
Replaces 991132, 991012, 991068, 991017 and 991067. HTS 791027 is also a replacement option. DM Advantage 79A9103 may also be used as a alternative to 791125(fan blade and solenoid valve change required).
HORTON 791125 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 7.5 |
| BELT CONFIGURATION | 4V |
| Belt Groove Location | 2.31 |
| BOLT CIRCLE | 3.5 |
| Fan Blade Stud Length | 0.002325 (.375-16) |
| FAN PILOT DIAMETER | 1.99 |
| HORIZONTAL MOUNTING DISTANCE | 5 |
| Overall Length | 7.28 |
| VERTICAL MOUNTING DISTANCE | 10 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 981126 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 791125 Cross References
| Brand | Part Number |
|---|---|
| KIT MASTERS | 91027 |
| NAVISTAR | FLT91027 |
| Paccar Parts | 791125RMAN |
| Peterbilt | 05-11369-041 |
