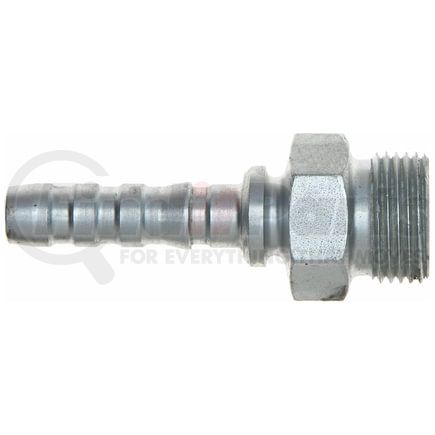

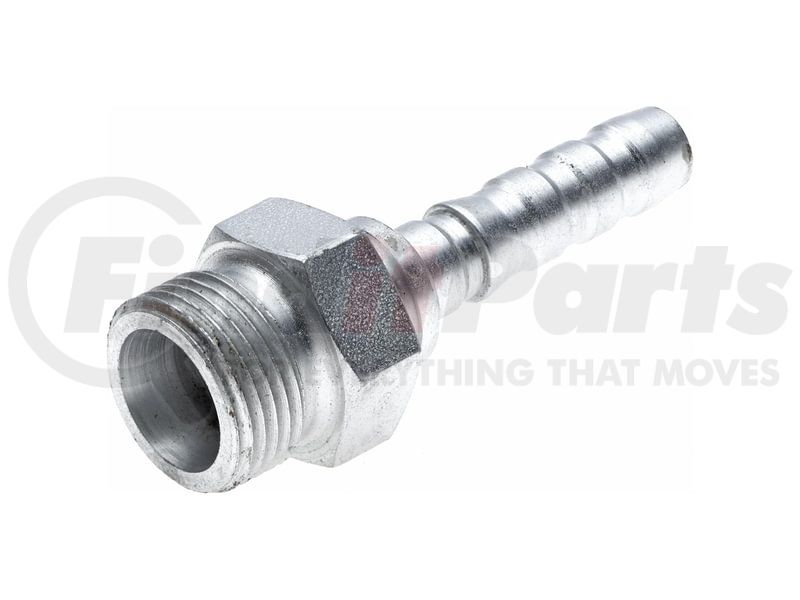

GATES G20715-0614 Part Description
Manufacturer
Product Description
Male DIN 24 Cone - Heavy Series (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20715-0614 Specifications
Product Attributes

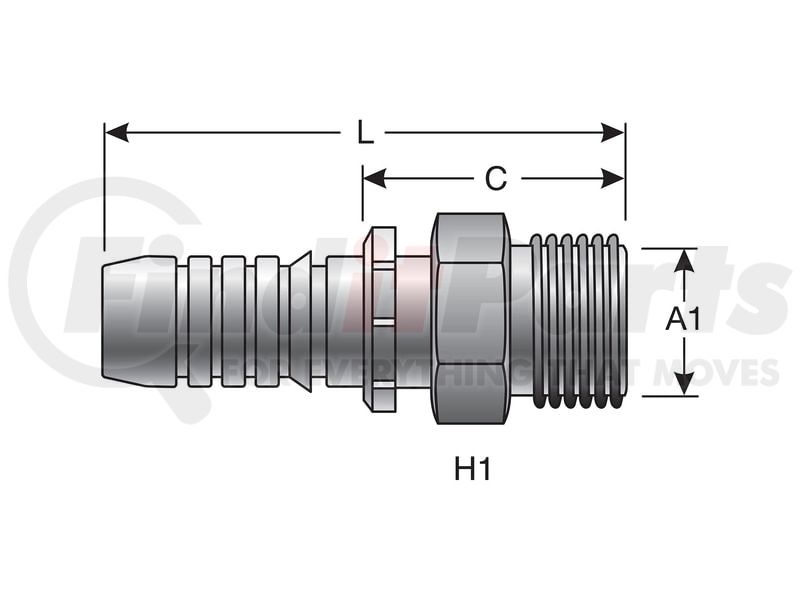

| Coupling Description | GlobalSpiral Male DIN 24 Cone - Heavy Series |
| Industrial Description | 6GS-14MDH |
| Thread Size | M22X1.5 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 14 MM |
| Stem Hex Size | 24 MM |
| Cut-Off Length | 1.18 IN |
| Length | 2.59 IN |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 29.9 MM |
| Length | 65.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00770075411475 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20715-0614 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 101810 |
| N/A | 04031213 |
| NAPA | G20715-0614 |
