GATES G22364-2432 Part Description
Manufacturer
Product Description

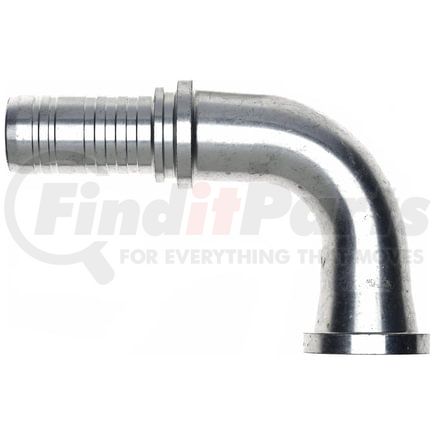

Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22364-2432 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 24GSP-32FLH90S |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Flange Thickness | .49 in |
| Flange Diameter | 3.13 IN |
| Drop Length | 4.72 IN |
| Cut-Off Length | 4.06 IN |
| Length | 6.96 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 12.7 MM |
| Flange Diameter | 79.5 MM |
| Drop Length | 119.9 MM |
| Cut-Off Length | 103.2 MM |
| Length | 176.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075417538 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22364-2432 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | 43024UD92 |
| NAPA | G22364-2432 |
