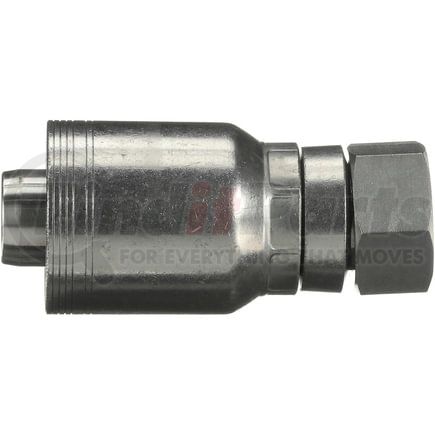

(888) 312-8812 Login SignupGATES G24830-2424 Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral MAX Pressure)
Tap to view 3 more
$33199
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 27
GATES G24830-2424 Part Description
Manufacturer
Product Description
Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
GATES G24830-2424 Specifications
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Female British Standard Parallel Pipe O-Ring Swivel |
| Industrial Description | 24GSM-24FBSPORX |
| Thread Size | 1 1/2-11 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Nut Hex Size | 55 MM |
| Cut-Off Length | 2.31 IN |
| Length | 6.06 IN |
| Inside Diameter | 38.1 MM |
| Cut-Off Length | 58.8 MM |
| Length | 153.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075417415 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G24830-2424 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 6S24BF24 |
| N/A | 04031469, 6048-2424 |
| NAPA | G24830-2424 |
| Weatherhead | 6SP24W-374, 6SP24W374 |
