GATES part description

Product Description

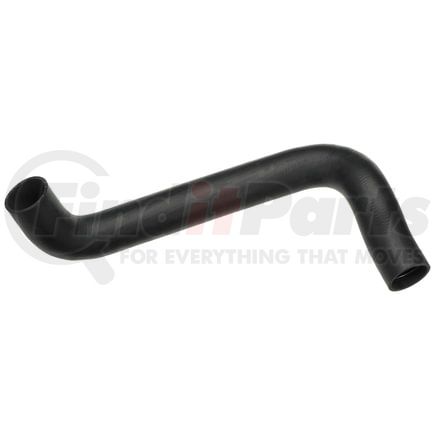

Premium Molded Coolant Hose

Application Summary

2016-09 International/Navistar, DuraStar 4300, International/Navistar MaxxForce DT Diesel, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 29.6 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 2.25 in
End 2 Inside Diameter 2.25 in
Contains Spring Yes
Material EPDM
9839 Yes
Centerline Length 752 MM
End 1 Inside Diameter 57 MM
End 2 Inside Diameter 57 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00770075511137
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • International 3200 (2009)
  • International Durastar (2015)
  • International 3300 (2015-2016)
  • International 7400 (2011-2012, 2015)
  • International 4400LP (2008-2015, 2018)
  • International 4300LP (2009-2011, 2013-2016)
  • International 4300 (2009-2011, 2013-2016)
  • International 4400 (2008-2015, 2018)
  • IC Corporation HC Integrated Commercial (2010-2012)
  • IC Corporation CE School Bus (2010-2016)
  • IC Corporation CE Integrated (2009)
