GATES G22832-3232 Part Description
Manufacturer
Product Description

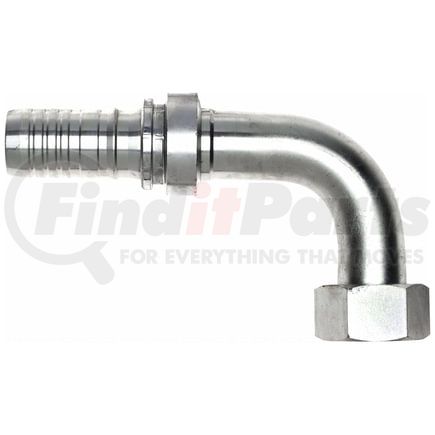

Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22832-3232 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 32GSP-32FBSPORX90 |
| Thread Size | 2-11 |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Nut Hex Size | 70 MM |
| Drop Length | 5.08 IN |
| Cut-Off Length | 6.41 IN |
| Length | 10.02 IN |
| Inside Diameter | 50.8 MM |
| Drop Length | 129 MM |
| Cut-Off Length | 162.7 MM |
| Length | 254.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075424628 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22832-3232 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101694 |
| Goodyear | 28120-3232 |
| NAPA | G22832-3232 |
