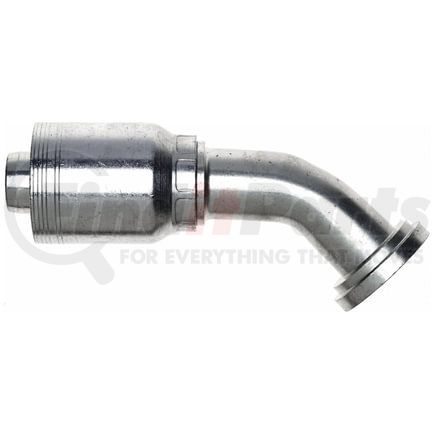

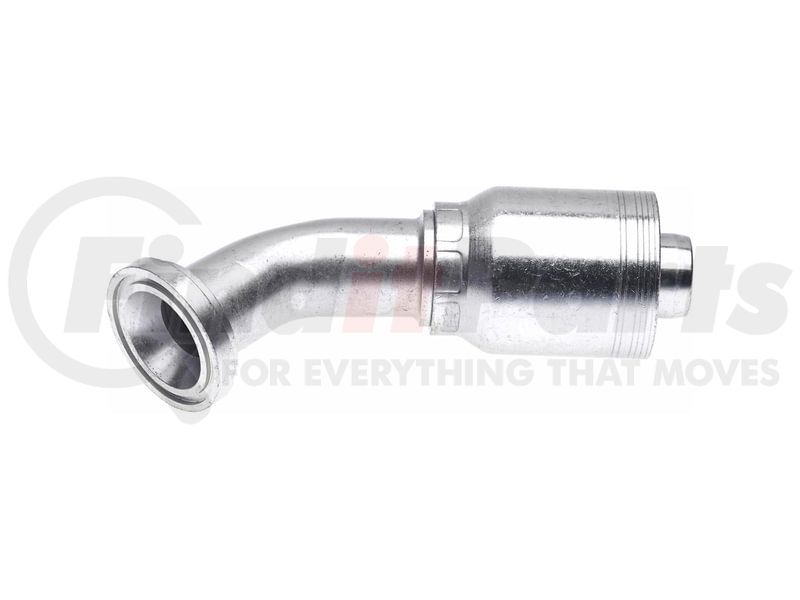

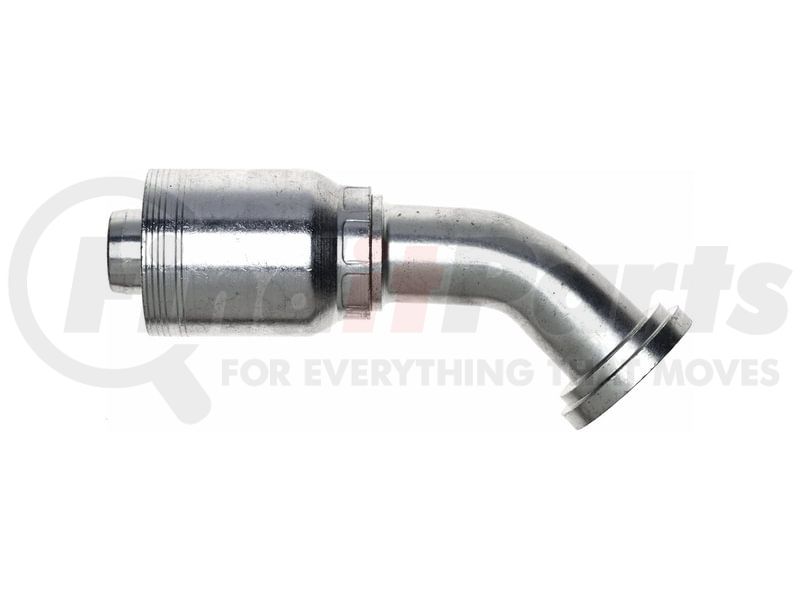

(888) 312-8812 Login SignupGATES G24304-2424 Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral MAX Pressure)
Tap to view 2 more
$22449
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 20
GATES G24304-2424 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
GATES G24304-2424 Specifications
Product Attributes

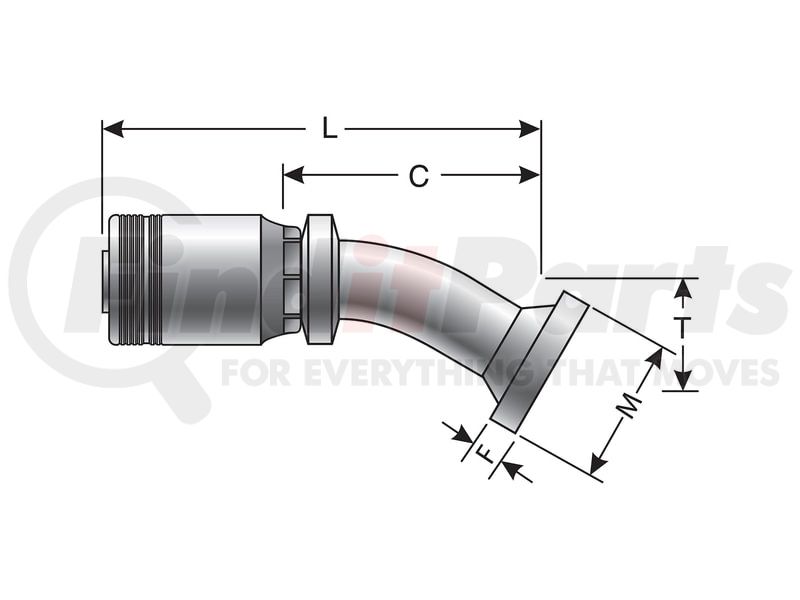

| Coupling Description | GlobalSpiral MAX Pressure Code 61 O-Ring Flange - 30 Bent Tube |
| Industrial Description | 24GSM-24FL30M |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | 1.77 IN |
| Cut-Off Length | 5.62 IN |
| Length | 8.52 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Drop Length | 45 MM |
| Cut-Off Length | 142.7 MM |
| Length | 216.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00770075420057 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G24304-2424 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 102128 |
| N/A | 04031403 |
| NAPA | G24304-2424 |
