Name: Gates 23494 Premium Modular Coolant Hose
SKU: 23494
Price: 178.49 USD
Availability: InStock

GATES part description

Product Description

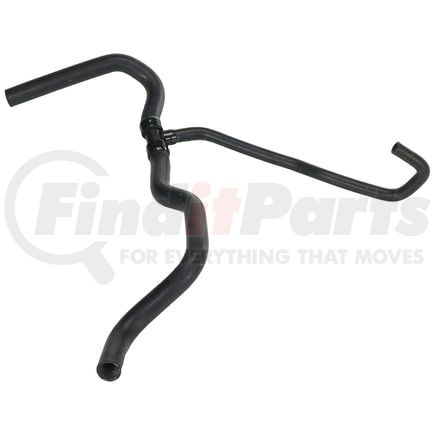

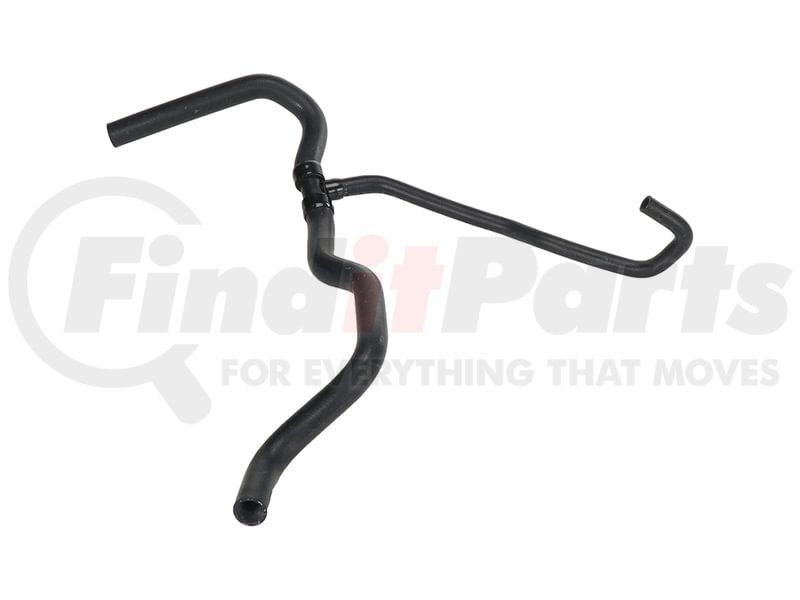

Premium Modular Coolant Hose

Application Summary

2010-06 Pontiac, Solstice, 4-Cyl. 2.4 L, Lower

Features & Benefits

Specifically-engineered materials resist collapse under vacuum
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation - the leading cause of hose failure
Engineered to resist electrochemical degradation – the leading cause of hose failure
EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length	49.3 IN
9940	Yes
9942	Branch
Branch Quantity	1
9845	0
End 1 Inside Diameter	1.31 in
End 2 Inside Diameter	1.31 in
End 3 Inside Diameter	.75 in
Contains Spring	No
Material	EPDM, Plastic
9839	Yes
Centerline Length	19 MM
End 1 Inside Diameter	33 MM
End 2 Inside Diameter	33 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009310000
UPC	00770075410478
VMRS Code	042004014
UNSPSC	40142000

Part Interchanges

Fits Vehicles

Pontiac Solstice (2006-2009)
Saturn Sky (2007-2010)
