GATES G18300-2020 Part Description
Manufacturer
Product Description

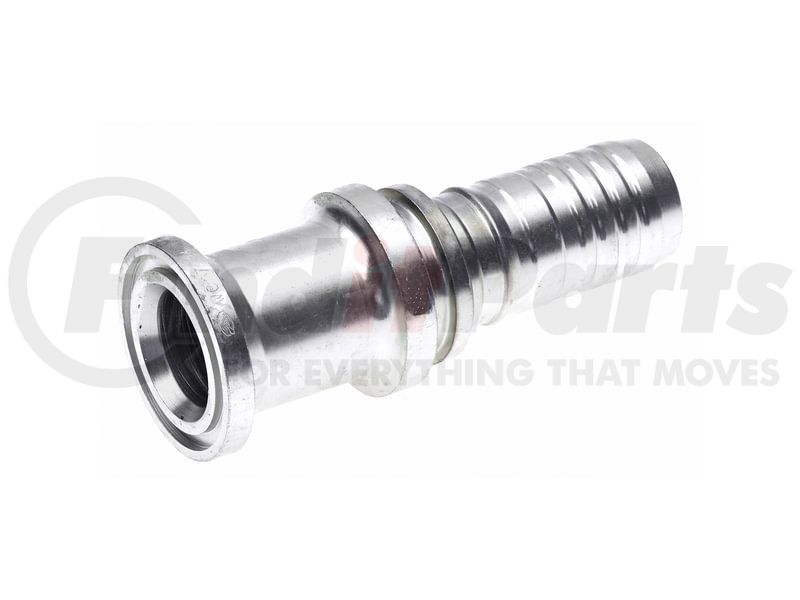

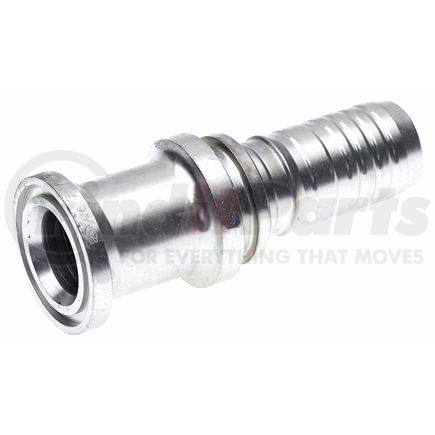

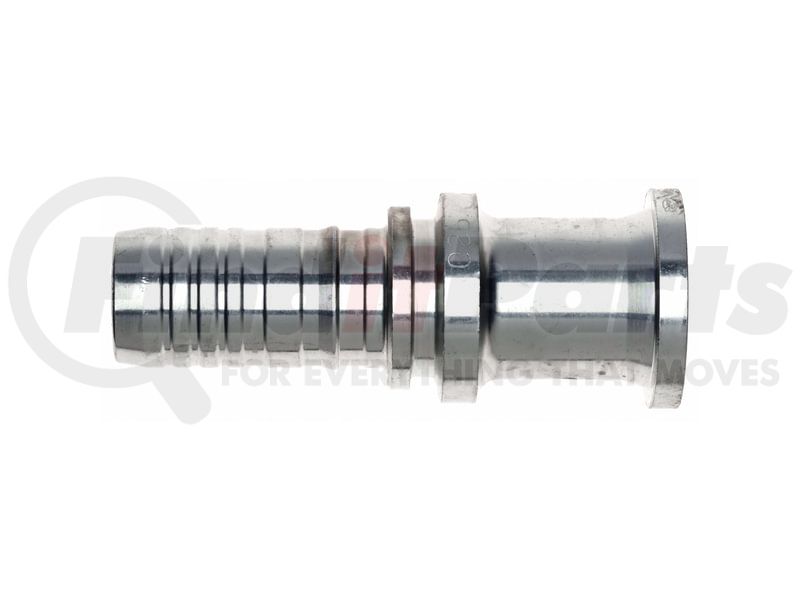

Code 61 O-Ring Flange (Stainless Steel Spiral)
Features & Benefits
- Stainless steel couplings last longer than standard couplings so you can avoid replacing an entire assembly before the hose itself needs replacement
- Fortified with 316 grade stainless steel
- Gates Stainless Steel stems are available in the B series for braided hose or the S series for spiral-wire
GATES G18300-2020 Specifications
Product Attributes
| Coupling Description | Stainless Steel Spiral Code 61 O-Ring Flange |
| Industrial Description | 20S-20FL-SS |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Gates EFG3K, EFG4K, EFG5K, EFG6K, M4K, M4KL |

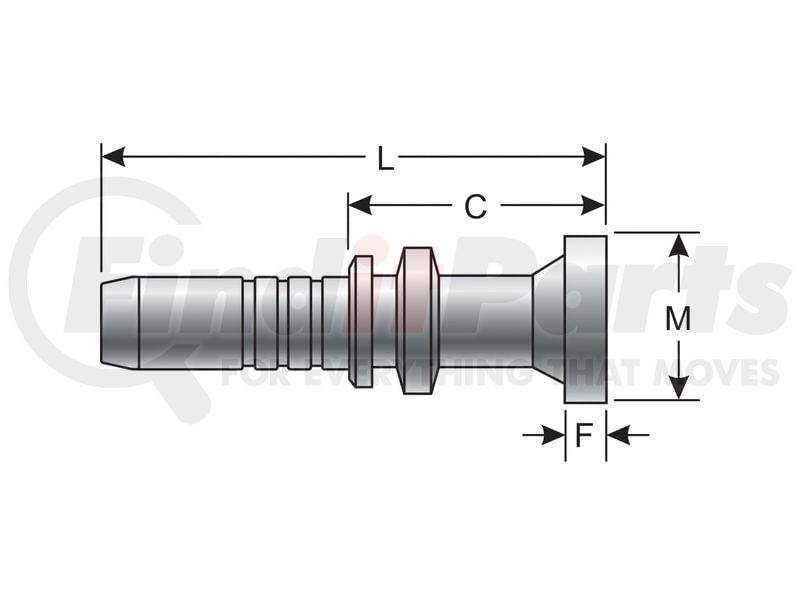

| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Cut-Off Length | 2.69 IN |
| Length | 5.43 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Cut-Off Length | 68.2 MM |
| Length | 138 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075447436 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G18300-2020 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04032969 |
| NAPA | G18300-2020 |
