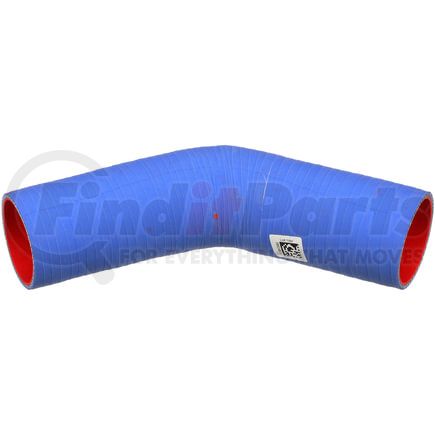

Gates 28201 - Molded 45 Degree Silicone Coolant Hose
$15199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Molded 45 Degree Silicone Coolant Hose
Features & Benefits
- Premium 4-ply construction
- High-heat resistance material meets or exceeds OE specifications
- Multiple layers of first grade silicone material
- Industry standard blue cover and orange tube for easy identification
- Polyester knit reinforcement, unaffected by permeation of coolants and heat
- Extra thick and resilient tube prevents cold water leaks and hardening under effect of heat
- High-grade silicone cover resists coolants, ozone, weathering, sunlight and extreme ambient temperatures
- Exceeds requirements of SAE J20R1, Class A
- Temperature Range: -65 Deg. F to +350 Deg. F (-54 Deg. C to +177 Deg. C)
- Gates also offers application-specific molded silicone coolant hose for exact dimensional specifications
Product Attributes
| Centerline Length | 12 IN |
| Arm Length | 6 IN |
| End 1 Inside Diameter | 2.75 in |
| End 2 Inside Diameter | 2.75 in |
| Angle | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Working Temperature Range | -65 Deg. to +350 Deg. F (-54 Deg. C to +177 Deg. C) |
| Material | Silicone |
| 9839 | Yes |
| Centerline Length | 305 MM |
| 5034 | 152 MM |
| End 1 Inside Diameter | 70 MM |
| End 2 Inside Diameter | 70 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075461401 |
| VMRS Code | 042004061 |
| UNSPSC | 40142000 |
