Name: Gates 28214 Molded 90 Degree Silicone Coolant Hose
SKU: 28214
Price: 165.49 USD
Availability: InStock

GATES part description

Product Description

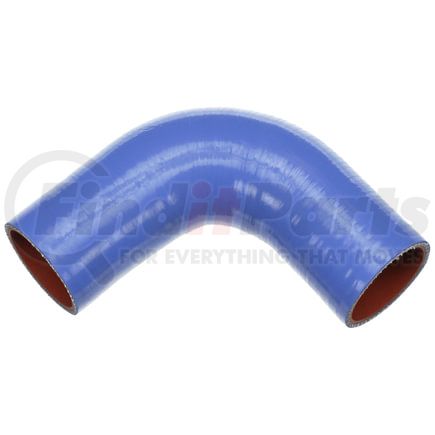

Molded 90 Degree Silicone Coolant Hose

Application Summary

2006 Western Star, 4900FA, Caterpillar C13 Diesel, Lower - Oil Cooler To Pipe

Features & Benefits

Premium 4-ply construction
High-heat resistance material meets or exceeds OE specifications
Multiple layers of first grade silicone material
Industry standard blue cover and orange tube for easy identification
Polyester knit reinforcement, unaffected by permeation of coolants and heat
Extra thick and resilient tube prevents cold water leaks and hardening under effect of heat
High-grade silicone cover resists coolants, ozone, weathering, sunlight and extreme ambient temperatures
Exceeds requirements of SAE J20R1, Class A
Temperature Range: -65 Deg. F to +350 Deg. F (-54 Deg. C to +177 Deg. C)
Gates also offers application-specific molded silicone coolant hose for exact dimensional specifications

Product Attributes

Centerline Length	12 IN
Arm Length	6 IN
End 1 Inside Diameter	3 in
End 2 Inside Diameter	3 in
Angle	90
Construction	Premium 4-Ply Polyester-Reinforced
Working Temperature Range	-65 Deg. to +350 Deg. F (-54 Deg. C to +177 Deg. C)
Material	Silicone
9839	Yes
Centerline Length	305 MM
5034	152 MM
End 1 Inside Diameter	76 MM
End 2 Inside Diameter	76 MM

Additional Information

Harmonized Tariff Code (Schedule B)	4009310000
Country of Origin (Primary)	US
UPC	00770075461531
VMRS Code	042004061
UNSPSC	40142000

Part Interchanges

Fits Vehicles

Western Star 6900XD (2014, 2016)
Western Star 4900FA (2006)
Western Star 4900SA (2005-2007, 2010-2013, 2016-2017)
