GATES part description

Product Description

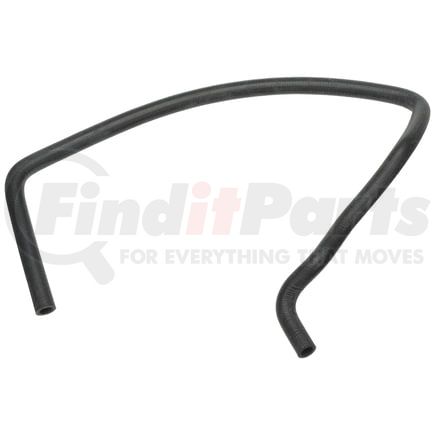

Premium Molded Heater Hose

Application Summary

2013-09 Dodge, Ram Series Pickup, V-8 5.7 L, Heater Outlet

Features & Benefits

  • Has all the quality features of Gates molded coolant hose and similar to OEM specifications
  • Engineered to resist electrochemical degradation - the leading cause of hose failure
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • EPDM tube, synthetic fiber knit reinforcement, EPDM cover
  • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
  • Temperature Range: -40 Deg. F to 275 Deg. F (-40 Deg. C -135 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 46.4 IN
Branch Quantity 0
End 1 Inside Diameter .62 in
End 2 Inside Diameter .62 in
9845 0
Material EPDM
9839 Yes
Centerline Length 1179 MM
End 1 Inside Diameter 16 MM
End 2 Inside Diameter 16 MM

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00770075455639
VMRS Code 042010004
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • Dodge Ram 3500 (2009)
  • Dodge Ram 2500 (2009-2010)
  • Dodge Ram 1500 (2009-2010)
  • Ram 3500 (2011-2013)
  • Ram 2500 (2010-2013)
  • Ram 1500 (2011-2013)
