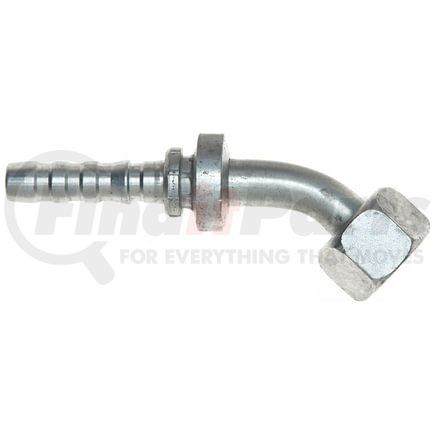

(888) 312-8812 Login SignupGATES G20831-1010 Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$8099
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
GATES G20831-1010 Part Description
Manufacturer
Product Description
Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20831-1010 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 10GS-10FBSPORX45 |
| Thread Size | 5/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 30 MM |
| Drop Length | 1.04 IN |
| Cut-Off Length | 2.67 IN |
| Length | 4.2 IN |
| Inside Diameter | 15.9 MM |
| Drop Length | 26.4 MM |
| Cut-Off Length | 67.7 MM |
| Length | 106.7 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075411215 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20831-1010 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G20831-1010 |
