GATES part description

Product Description

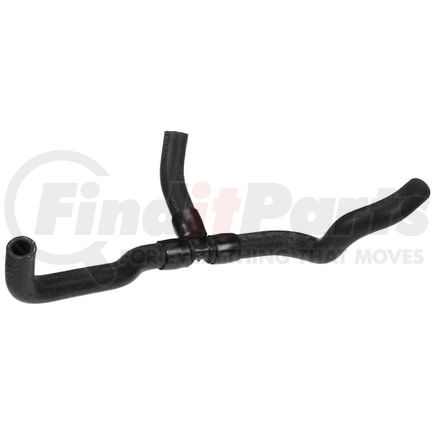

Premium Modular Coolant Hose

Application Summary

2010-07 Toyota, Sienna, V-6 3.5 L, Heater - Inlet Assembly

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation - the leading cause of hose failure
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
  • Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
  • Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 19.9 IN
9940 Yes
Branch Quantity 1
9845 0
End 1 Inside Diameter .63 in
End 2 Inside Diameter .63 in
End 3 Inside Diameter .63 in
Contains Spring No
Material EPDM, Plastic
9839 Yes
Centerline Length 16 MM
End 1 Inside Diameter 16 MM
End 2 Inside Diameter 16 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00770075444701
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • Toyota Sienna (2007-2010)
