(888) 312-8812 Login SignupGATES G20230-1612 Female Flat-Face O-Ring Swivel (GlobalSpiral)
Tap to view 3 more
SHIPS TODAY
MSRP: $58.78
$5649
Save $2.29
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GATES G20230-1612 Part Description
Manufacturer
Product Description

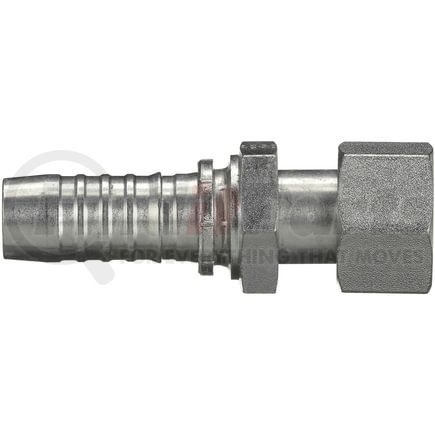

Female Flat-Face O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20230-1612 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Industrial Description | 16GS-12FFORX |
| Thread Size | 1 3/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 36 MM |
| Nut Hex Size | 36 MM |
| Cut-Off Length | 2.92 IN |
| Length | 5.15 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 74.2 MM |
| Length | 130.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075356257 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20230-1612 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101342, 102057A |
| Goodyear | 29700-1612 |
| NAPA | G20230-1612 |
