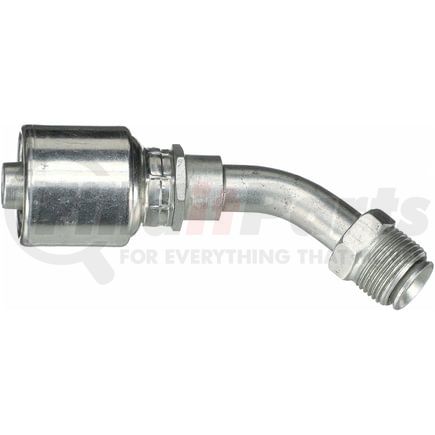

(888) 312-8812 Login SignupGATES G25502-0404 SAE Male Inverted Swivel - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$4449
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G25502-0404 Part Description
Manufacturer
Product Description
SAE Male Inverted Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25502-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 45 Bent Tube |
| Industrial Description | 4G-4MIX45-024 |
| Thread Size | 7/16-24 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .444 IN |
| Drop Length | .93 IN |
| Cut-Off Length | 2.02 IN |
| Length | 3.04 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Drop Length | 23.5 MM |
| Cut-Off Length | 51.2 MM |
| Length | 77.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00770075425205 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25502-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 16743-4-4, 167HY-4-4 |
| Dayco | 108440 |
| Weatherhead | 04EB44, 04UB44, 04ZB44 |
| Goodyear | 14810-0404 |
| NAPA | G25502-0404 |
