GATES 85435 Part Description
Manufacturer
Product Description

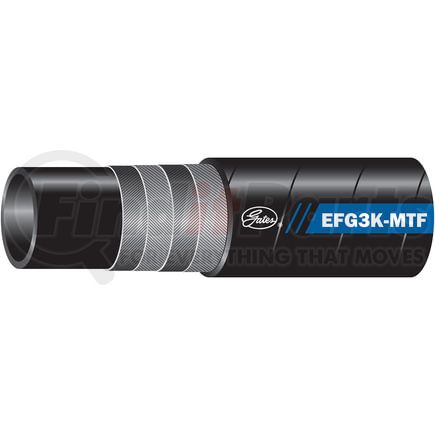

EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only], GlobalSpiral Plus Couplings [G22 Series], Stainless Steel Couplings [G17 Series - Braid] and [G18 - Spiral]
- Tested to industry-leading 1,000,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
GATES 85435 Specifications
Product Attributes
| Product Type | EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover |
| Industrial Description | 32EFG3K-MTFX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 25 FT |
| Dash Size | 32 |
| Inside Diameter | 2 IN |
| Outside Diameter | 2.63 IN |
| Bend Radius | 25 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral Plus |
| SAE Standard | 100R12 |
| EN Standard | 857 R12, 856 4SP |
| ISO Standard | 18753 Grade D, 3862 Type R12 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00770075430698 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85435 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | H430R32150 |
| NAPA | 85435 |
