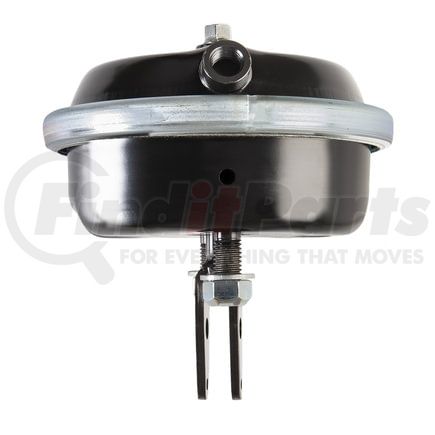

Name: Haldex SC30CW Air Brake Chamber - Single Diaphragm, T30, 2.5 in. Stroke Length, Standard Stroke
SKU: sc30cw
Price: 66.99 USD
Availability: InStock

HALDEX part description

Product Description

Service Chamber with Welded Clevis - Size T30

Application Summary

Service Chamber with Welded Size T30

Features & Benefits

Has powder-coated steel pressure housing with resistance welded air ports for long-term durability
World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
With sturdy powder-coated service housing that can withstand corrosion
Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
Self-piloting dust shield extends air brake system lifespan
Air port threads of 3/8-18 NPTF to provide a more leak-free seal
150 psi maximum air pressure

Haldex Air Brake Chamber

Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T30 service chamber with welded clevis is specially designed to resist extreme temperatures and can fit most drum brake applications.

Product Attributes

Diaphragm Type	Single
Ram Stroke	2.5 in.
Air Port Thread Diameter	3/8-18 NPTF
Air Port Position	0°
Bracket to End of Spring Housing Length	3.7 in.
Clevis Pin Length	2.25 in.
Freight Class	70
Maximum Pressure	150 PSI
Push Rod Length	1 in.
Service Chamber Size	30
Service Clampband Position	0°
Service Clampband Size	8.3 in.
Stroke Type	Standard
Stud Distance	4.75 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8412310080
Harmonized Tariff Code (HTS)	8412310080
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653331041
VMRS Code	013010034

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX SC30CW Cross Reference

We have 2 alternatives for the SC30CW by HALDEX:
