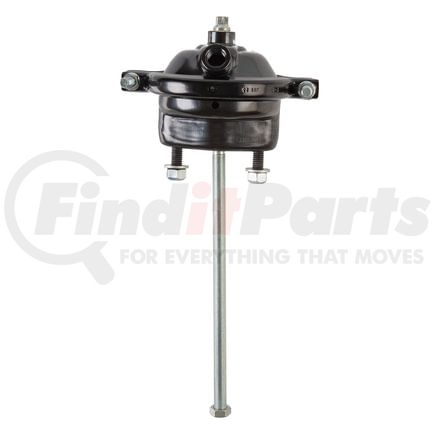

HALDEX SC09 Part Description
Manufacturer
Product Description
Service Chamber - Size T09
Application Summary
Service Chamber - Size T09
Features & Benefits
- Has powder-coated steel pressure housing with resistance welded air ports for long-term durability
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With sturdy powder-coated service housing that can withstand corrosion
- Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
- Self-piloting dust shield extends air brake system lifespan
- Air port threads of 3/8-18 NPTF to provide a more leak-free seal
- 150 psi maximum air pressure
Haldex Air Brake Chamber
Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T09 service chamber is specially designed to resist extreme temperatures and can fit most drum brake applications.
HALDEX SC09 Specifications
Product Attributes
| Diaphragm Type | Single |
| Ram Stroke | 1.75 in. |
| Air Port Position | 90° |
| Bracket to End of Spring Housing Length | 3.7 in. |
| Freight Class | 70 |
| Push Rod Length | 10.4 in. |
| Service Chamber Size | 9 |
| Service Clampband Position | 0° |
| Service Clampband Size | 7.5 in. |
| Stroke Type | Standard |
| Stud Distance | 3 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653299174 |
| VMRS Code | 013010034 |
HALDEX SC09 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 129090016, KN36090, SC9, 225922, 1006906-001, 129090000, P-66938, 6600844, 15506032, A-21542, B22708, 400.85881, 139425R91, V1-3276-J-10, 01635001860000, 1241241, 16671148000, 712002005, A22384, BSC-09, SC09 |
| Haldex | 129090016, N36209AD, N36209AF, N36209J, N36209L |
| Midland | KN36090, MA36090, MA36095, N30109AC, N30109AF, N30109AG, N30109AH, N30109BA, N36209, N36209AA, N36209AB, N36209AC, N36209AD, N36209AE, N36209AF, N36209AG, N36209AH, N36209AJ, N36209B, N36209E, N36209F, N36209GA, N36209GC, N36209GD, N36209J, N36209K, N36209L, N36209M, N36209N, N36209R, N36209S, N36209T, N36209Y, N36209Z |
| Prior | SC9 |
| Bendix | 225922, 225929, 225936, 226172, 226173, 226174, 226176, 226693, 226694, 226763, 226764, 226934, 226956, 227392, 227550, 227690, 227691, 228004, 228016, 228123, 228130, 228218, 228422, 228504, 228517, 228674, 228807, 228833, 228903, 229234, 229235, 229926, 229927, 229994, 229995, 275085, 275131, 275373, 276800, 277074, 277429, 278491, 279338, 281174, 281211, 282028, 282453, 285163, 285231, 286806, 286918, 286920, 287302, 287331, 287349, 287900, 287901, 287902, 287903, 287904, 287905, 287906, 287907, 287908, 287909, 287910, 287911, 287912, 287913, 287914, 287915, 287916, 287917, 287919, 28792, 287920, 287921, 287922, 287923, 287924, 287925, 287926, 287927, 287928, 287929, 287932, 287933, 287934, 287935, 287936, 287937, 288640, 288789, 288790, 288792, 288793, 288794 |
| Eaton | 1006906-001, 1006906-002 |
| Anchorloc | 129090000, 129090001, 129090002, 129090003, 129090004, 129090005, 129090006, 129090007, 129090008, 129090009, 129090010, 129090011, 129090012, 129090013, 129090014, 129090015, 129090019, 129090020, 129090021, 160460, 160461, 160462, SC09 |
| Dana Commercial Vehicle Service Parts | P-66938 |
| E D Etnyre | 6600844, Q490417 |
| GMC | 15506032, 15513598, 2015233, 2015234, 2015238, 2029211 |
| Turner | A-21542, B-22708 |
| Hendrickson | B22708, B22815 |
| McNeilus | 400.85881 |
| Navistar | 139425R91, 144431R91, 145517R91, 215713R91, 284441C91, 284442C91, 284443C91, 292485C91, 298019R91, 298950R91, 300775R91, 455037C91, 514520C91, 67412AM |
| Rockwell International | V1-3276-J-10, Z56-3276-J-10, Z57-3276-J-10 |
| Terex | 01635001860000, 0329419950, 29419950, 635001651000, 635001860000 |
| Landoll | 1241241 |
| Ridewell Corp | 16671148000 |
| Trail King Industries | 712002005 |
| Wagner | A22384, A22384-001, AC22384 |
| RANGER BRAKE | BSC-09 |
| OTR | SC09 |
| MIDLAND | KN36090, MA36090, MA36095, N30109AC, N30109AF, N30109AG, N30109AH, N30109BA, N36209, N36209AA, N36209AB, N36209AC, N36209AD, N36209AE, N36209AF, N36209AG, N36209AH, N36209AJ, N36209B, N36209E, N36209F, N36209GA, N36209GC, N36209GD, N36209J, N36209K, N36209L, N36209M, N36209N, N36209R, N36209S, N36209T, N36209Y, N36209Z |
| PRIOR | SC9 |
| BENDIX | 225922, 225929, 225936, 226172, 226173, 226174, 226176, 226693, 226694, 226763, 226764, 226934, 226956, 227392, 227550, 227690, 227691, 228004, 228016, 228123, 228130, 228218, 228422, 228504, 228517, 228674, 228807, 228833, 228903, 229234, 229235, 229926, 229927, 229994, 229995, 275085, 275131, 275373, 276800, 277074, 277429, 278491, 279338, 281174, 281211, 282028, 282453, 285163, 285231, 286806, 286918, 286920, 287302, 287331, 287349, 287900, 287901, 287902, 287903, 287904, 287905, 287906, 287907, 287908, 287909, 287910, 287911, 287912, 287913, 287914, 287915, 287916, 287917, 287919, 28792, 287920, 287921, 287922, 287923, 287924, 287925, 287926, 287927, 287928, 287929, 287932, 287933, 287934, 287935, 287936, 287937, 288640, 288789, 288790, 288792, 288793, 288794 |
| ANCHORLOK | 129090000, 129090001, 129090002, 129090003, 129090004, 129090005, 129090006, 129090007, 129090008, 129090009, 129090010, 129090011, 129090012, 129090013, 129090014, 129090015, 129090019, 129090020, 129090021, 160460, 160461, 160462, SC09 |
| DANA | P-66938 |
| HENDRICKSON | B22708, B22815 |
| MCNEILUS | 400.85881 |
| NAVISTAR | 139425R91, 144431R91, 145517R91, 215713R91, 284441C91, 284442C91, 284443C91, 292485C91, 298019R91, 298950R91, 300775R91, 455037C91, 514520C91, 67412AM |
| ROCKWELL | V1-3276-J-10, Z56-3276-J-10, Z57-3276-J-10 |
| LANDOLL | 1241241 |
| RIDEWELL | 16671148000 |
| WAGNER | A22384, A22384-001, AC22384 |
HALDEX SC09 Cross References
We have 3 alternatives for the SC09 by HALDEX:
HALDEX SC09 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX SC09 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
