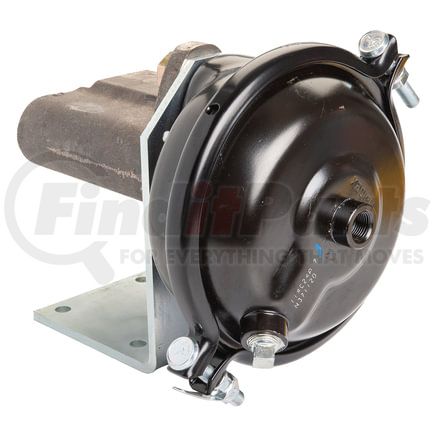

(888) 312-8812 Login SignupHALDEX N37112D Brake and Clutch Master Cylinder Assembly - Air/Hydraulic Pressure Converter
Tap to view 1 more
$1,29349
Limited availability at this price!
2 Day Lead Time
Get it by Monday, Feb 9
HALDEX N37112D Part Description
Manufacturer
Product Description
Pressure Converter Air/Hydraulic
Features & Benefits
- Designed for use in systems that require a small hydraulic displacement
- Series III, Used in systems which require a small hydraulic displacement. Rugged construction. Designed with premium quality long-life components.
- Has a rugged construction for maximum durability
- Units available for use with either DOT3/DOT4 brake fluid. Haldex Pressure Converters are designed as brake actuation devices and are not to be used for parking or holding brake applications.
- Lasts long in service as it is designed using premium-quality components
- Haldex pressure converters are made for use with DOT3/DOT4 brake fluid
Haldex Series III Pressure Converter Assembly
Designed as a brake actuation device, the Haldex Series III pressure converter assembly offers superior performance and maximum efficiency. It is made to meet or exceed OEM specifications, so it fits and works just like the original pressure converter.
HALDEX N37112D Specifications
Product Attributes
| Bracket With Chamber | 180° |
| Clamp Band Degree Of Rotation | 45/225° |
| Displacement Min. Hydraulic | 3.0 cu. in. |
| Electric Overstroke Indicator | No |
| Filler Cap | 1/2"-20 Thread |
| Freight Class | 70 |
| Housing Dimension - Height (C) | 7.34 in. |
| Housing Dimension - Length (A) | 11.06 in. |
| Housing Dimension - Width (B) | 4.57 in. |
| Hydraulic Residual Check Valve | Yes |
| Hydraulic/Air Ratio | 0.500694444444444 |
| Bracket with Chamber (E) | 180 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653084084 |
| VMRS Code | 013010021 |
HALDEX N37112D Cross References
HALDEX N37112D Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX N37112D Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
