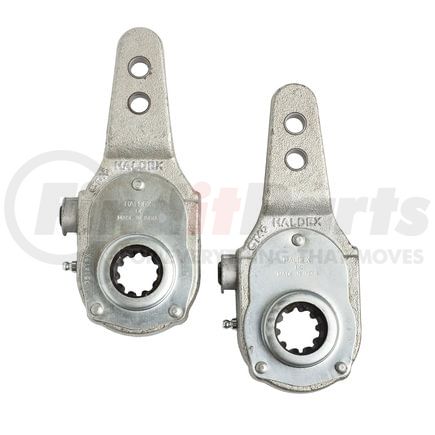

Haldex KN49000 - Air Brake Manual Slack Adjuster - 1-1/4"-10 Spline, 4.5 in. Arm Length, 5.5 Offset
$9649
MSRP: $96.79
Save: $0.30
Limited Availability
Pay over 3-12 months with . Learn more
HALDEX part description
Product Description
Manual Brake Adjuster Arm Length 4.5, 5.5 Offset
Application Summary
Notes: This drawing illustrates the proper viewing angle to determine the right or left-hand offset of the slack adjuster. Unit is to be mounted with adjusting nut away from push rod only, BUSHING NUMBER - 45210129.
Features & Benefits
- Made using ductile iron for superior durability
- With bushed arm holes and can accommodate up to 20,000 inch lbs.
- Permanently lubricated for maximum efficiency
- Designed with a positive locking mechanism that is corrosion resistant
- Offers superior rust protection since assemblies are plated
- Product comes with zerk fitting for optional lubrication
- Built to last for years to come
Haldex Air Brake Manual Slack Adjuster
Prevent costly downtime due to a faulty manual brake adjuster—replace it at once with the Haldex air brake manual slack adjuster. This offset arm adjuster is made to meet or exceed OEM standards to ensure the highest quality at a competitive price.
Product Attributes
Arm Length | 4.5 in., 5.5 in. |
Body Angle | 0 DD |
Freight Class | 70 |
Offset | 0 in. |
Pin Diameter | 1/2 in. |
Spline Diameter | 1-1/4 in. |
Spline Quantity | 10 |
Additional Information
Country of Origin (Primary) | IN |
Harmonized Tariff Code (Schedule B) | 8716905060 |
Harmonized Tariff Code (HTS) | 8716905060 |
Remanufactured Part | N |
Warranty Distance | 100000 |
Warranty Distance UOM | MI |
Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 00767653012049 |
VMRS Code | 013002028 |
Part Interchanges
- M2580
- E-2762
- H2027R
- L1379
- CS49050
- 278294
- 807257
- P-66903
- E4HZ2308B
- ZZKN49000
- B99-3275-G-501
- 2037
- 05-232
- S-9869
- CS49001
- AC32382
- 2073
- BWP M2580
- Euclid E-2762
- Hercules H2027R
- Leland L1379
- Midland CS49050
- Bendix 278294
- Eaton 807257
- Dana Commercial Vehicle Service Parts P-66903
- Ford E4HZ2308B
- Navistar ZZKN49000
- Rockwell International B99-3275-G-501
- Tectran 2037
- Batco 05-232
- S&S Truck Parts S-9869
- NAPA CS49001
- Wagner AC32382
- Tramec Sloan 2073
- EUCLID E-2762
- LELAND L1379
- MIDLAND CS49050
- Midland KN49000
- Midland KN49050
- Midland N21133GC
- Midland N21133GJ
- BENDIX 278294
- Bendix 286631
- Bendix 288850
- Eaton 82077
- Eaton 821284
- DANA P-66903
- FORD E4HZ2308B
- NAVISTAR ZZKN49000
- ROCKWELL B99-3275-G-501
- Rockwell International R822013
- Rockwell International R824013
- Rockwell International R825005
- BATCO 05-232
- Batco 5-232
- WAGNER AC32382
- Tramec Sloan 2074
- MIDLAND KN49000
- MIDLAND KN49050
- MIDLAND N21133GC
- MIDLAND N21133GJ
- BENDIX 286631
- BENDIX 288850
- ROCKWELL R822013
- ROCKWELL R824013
- ROCKWELL R825005
- BATCO 5-232
HALDEX KN49000 Cross Reference
We have 2 alternatives for the KN49000 by HALDEX:
