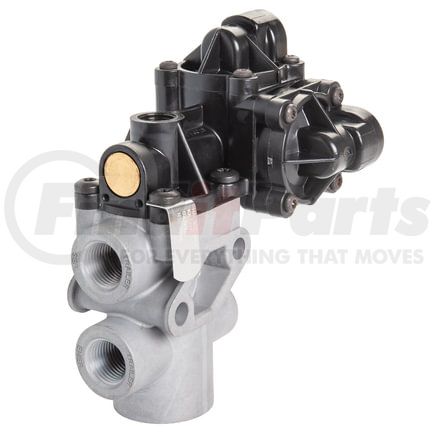

Name: Haldex KN34111 Tractor Protection Valve - Two Line Manifold Style, OEM N30162ME
SKU: kn34111
Price: 185.28 USD
Availability: InStock

HALDEX part description

Product Description

Tractor Protection Valves Two-Line

Features & Benefits

Includes a stoplight switch port, tractor protection, two double check valves, and a built-in quick release, all-in-one valve
A manifold-style valve that can be used to replace up to four valves on competitive systems
Designed with Push-To-Connect (PTC) fittings for nylon tubes
Made of high-quality materials for superior performance and durability
Built to withstand even the harshest operating conditions
All Haldex valves are designed for trouble-free air brake system repair and maintenance

Haldex Tractor Protection Valve

The Haldex tractor protection valve is designed primarily to protect the tractor air brake system in the event of severe air leakage or a trailer breakaway. Manufactured by a brand with a solid reputation in manufacturing high-quality air brake components and valves, this product is guaranteed to offer maximum efficiency and excellent performance.

Product Attributes

Exhaust Tube Included	No
Foot Control Port Diameter	2 @ 3/8 in.
Freight Class	70
Hand Control Port Diameter	3/8 in.
Stop Light Switch	1 @ .25 in.
Tractor Emergency Inlet Port Diameter	3/8 in.
Trailer Emergency Port Diameter	1/2 in.
Trailer Service Port Diameter	1/2 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8481200070
Harmonized Tariff Code (HTS)	8481200070
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653215402
VMRS Code	013010016

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX KN34111 Cross Reference

We have 2 alternatives for the KN34111 by HALDEX:
