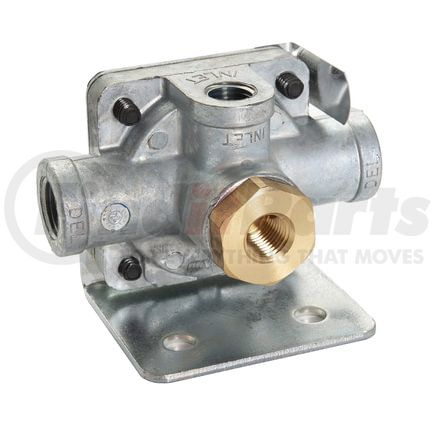

Name: Haldex KN32041 Air Brake Quick Release Valve - (2) 1/4" Controlt, (2) 3/8" Delivery
SKU: kn32041
Price: 85.99 USD
Availability: InStock

HALDEX part description

Product Description

Quick Release Valve with Two-Way Check

Features & Benefits

Used primarily in spring brake control circuits to prevent compounding on trucks and tractors
Designed to replace two valves
With oil-resistant diaphragm and disk to offer long-lasting service
Stringently evaluated to ensure reliability, performance, and high efficiency
All Haldex valves are designed for trouble-free air brake system repair and maintenance

Haldex Air Brake Quick Release Valve

Maintain high air brake performance with a premium-quality Haldex air brake quick release valve. Manufactured by a brand with a solid reputation in manufacturing top-quality air brake system components, this valve effectively exhausts brake chamber air pressure and speeds up brake release. It does this by reducing the distance the air would have to travel back to the brake valve exhaust port.

Product Attributes

Control Port Diameter	1/4 in.
Delivery Port Diameter	2 @ 3/8 in.
Freight Class	70
Mounting Centers	1.5 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8481200070
Harmonized Tariff Code (HTS)	8481200070
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653011158
VMRS Code	013010008

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX KN32041 Cross Reference

We have 4 alternatives for the KN32041 by HALDEX:
