Haldex KN28601 - Full-Function (FF2) Trailer Valve - Single Valve Sytem, 3.0 PSI Crack Pressure, OEM N4304AB
$19949
MSRP: $294.34
Save: $94.85
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
HALDEX part description
Product Description

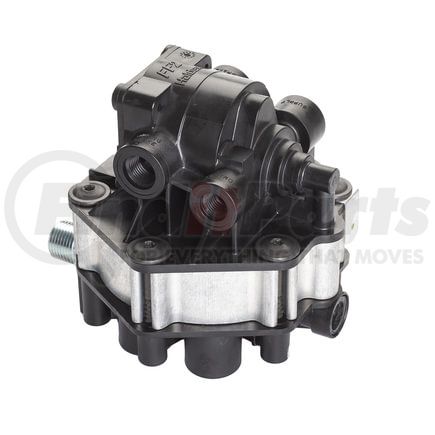

FF2 - Full Function Trailer Valve
Features & Benefits
- FMVSS-121-compliant Full Function Trailer Valves have built-in functions such as pressure protection and anti-compounding to eliminate broken foundation components due to spring brake compounding
- Comes with a single-valve system for easy installation, repair, and maintenance
- Made with engineering-grade composites that are lighter, more durable, and corrosion-resistant than aluminum
- With built-in service and spring brake quick release
- Engineered for single or twin air tanks
- With highly durable and corrosion-resistant mounting nipple
- Designed with service brake priority to make sure air tank pressure can stop the vehicle once the spring brakes are released
- Weighs only 3 lbs.
Haldex ABS Modulator Valve
The Haldex ABS modulator valve is the perfect replacement component to keep your truck’s anti-lock braking system working at its best. This unit offers compatibility and like-new performance as it’s built to meet or exceed OEM specifications.
Product Attributes
Control Port Diameter | 1/4 in. |
Freight Class | 70 |
Opening Pressure | 3.0 PSI |
Reservoir Port Diameter | 1/2 in. |
Spring Brake Port Diameter | 2 @ 3/8 in. |
Supply Port Diameter | 3/8 in. |
Additional Information
Country of Origin (Primary) | MX |
Harmonized Tariff Code (Schedule B) | 8481200070 |
Harmonized Tariff Code (HTS) | 8481200070 |
Remanufactured Part | N |
Warranty Distance | 100000 |
Warranty Distance UOM | MI |
Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 00767653010830 |
VMRS Code | 013010364 |
Part Interchanges
- E-MDKN28601X
- 12352
- 55710085
- FTV-4074
- 04881
- 119100132
- 85106570
- 17-7-206
- 31-5582
- ZZKN28601
- 14225
- U55 KN28601
- 04 60276 001 00
- PPA-120
- 03-9350-0-052
- WAKN28601
- A-CE9460-1
- 12352N
- RB-28601
- AV28601
- 401222
- Euclid E-MDKN28601X
- Midland 12352
- Fontaine 55710085
- PAI FTV-4074
- Cheetah 04881
- Dorsey Trailer 119100132
- Volvo 85106570
- Trailmobile 17-7-206
- Heil 31-5582
- Navistar ZZKN28601
- Tectran 14225
- Gemala Trailer Corp. 17-7-206
- Ryder U55 KN28601
- Stoughton Trailers 04 60276 001 00
- Transcraft PPA-120
- Utility Trailer Manufacturing 03-9350-0-052
- World American WAKN28601
- Wabash National A-CE9460-1
- NAPA 12352N
- RANGER BRAKE RB-28601
- OTR AV28601
- Tramec Sloan 401222
- EUCLID E-MDKN28601X
- MIDLAND 12352
- Midland 12352N
- Midland 12352X
- Midland KN28601
- Midland KN28601X
- Midland KN28604
- Midland KN28621
- Midland KN28622
- Midland N4304A
- Midland N4304AB
- Midland N4304AJ
- Midland N4304BB
- Midland N4304BC
- Midland N4304DA
- Midland N4304DT
- Midland N4304FA
- CHEETAH 04881
- VOLVO 85106570
- TRAILMOBILE 17-7-206
- Heil 9941-0101
- NAVISTAR ZZKN28601
- RYDER FLEET PROD. U55 KN28601
- Ryder U55 KN28601X
- TRANSCRAFT PPA-120
- Utility Trailer Manufacturing 03-9350-0-054
- Utility Trailer Manufacturing 03-9354-0-054
- Utility Trailer Manufacturing 3-9350-050
- Utility Trailer Manufacturing 3-9350-054
- Utility Trailer Manufacturing 3-9350-50
- WORLD AMERICAN WAKN28601
- Wabash National A-CF9460-1
- NAPA 68160
- MIDLAND 12352N
- MIDLAND 12352X
- MIDLAND KN28601
- MIDLAND KN28601X
- MIDLAND KN28604
- MIDLAND KN28621
- MIDLAND KN28622
- MIDLAND N4304A
- MIDLAND N4304AB
- MIDLAND N4304AJ
- MIDLAND N4304BB
- MIDLAND N4304BC
- MIDLAND N4304DA
- MIDLAND N4304DT
- MIDLAND N4304FA
- RYDER FLEET PROD. U55 KN28601X
HALDEX KN28601 Cross Reference
We have 11 alternatives for the KN28601 by HALDEX:
