(888) 312-8812 Login SignupHALDEX KN28520 Air Brake Relay Valve - 1/2" Port, Core Group 225, 5.6 ± 1.0 PSI Cracking Pressure
$10949
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 3
HALDEX KN28520 Part Description
Manufacturer
Product Description
RG2 Relay Valve
Features & Benefits
- Designed as a fast relay that can be used to apply and release service brakes on tractor or trailer

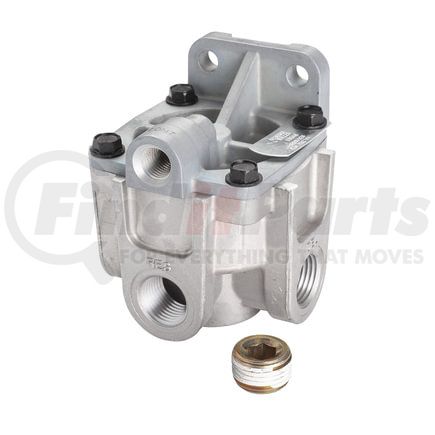

- Picture illustrates 90° control port position. 0° would locate port in line with delivery port "D". Repair Kit use part number RN10HM.
- Picture illustrates 90deg control port position. 0deg would locate port in line with delivery port "D". Repair Kit use part number RN10HM.
- Compact in size for easier installation
- Repair Kit use part number RN10HM.
- Product’s cover may be rotated without affecting the warranty or performance
- RG2 Relay Valve, A fast relay used to apply and release service brakes on tractor or trailer. Compact size. Cover may be rotated without affecting warranty or performance.
- A cost-effective option that works just as good as the new relay valve
Haldex Like-Nu Air Brake Relay Valve
Get improved air brake system performance with the Haldex Like-Nu air brake relay valve. This 2-port, RG2 trailer valve goes through stringent remanufacturing processes to provide supreme levels of quality, performance, and reliability.
HALDEX KN28520 Specifications
Product Attributes
| Control Port Diameter | 1/4 in. |
| Delivery Port Diameter | 2 @ 1/2 in. |
| Freight Class | 70 |
| Height | 0.63 in. |
| Length | 3.50 in. |
| Mounting Hole Diameter | 2 @ 0.34 in. on 1.5 in. Centers |
| New Or Remanufactured | New |
| Notes | Includes (1) Plug @ 0.5 in. |
| Opening Pressure | 5.6 ± 1.0 PSI |
| Port Position | 90° |
| Port Quantity | 5 |
| Series | RG2 |
| Supply Port Diameter | 2 @ 1/2 in. |
| Width | 3.50 in. |
| Control Port | .25 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653010786 |
| VMRS Code | 013010009 |
HALDEX KN28520 Cross References
| Brand | Part Number |
|---|---|
| 013-010-009, HDXKN28520 | |
| DANA | P-67595 |
| DI-PRO | 30069 |
| Dana Commercial Vehicle Service Parts | P-67595 |
| Di-Pro Inc. | 30069 |
| Euclid | AE78887, E-MDKN28520X, E-SL110410X, E-SL110412X |
| Genuine Newstar | S-6029 |
| HALDEX | KN28520, KN28520X |
| MERITOR | R955KN28520N |
| Meritor | 9732980140, RKN28520, RN30108AH |
| Midland | A78887X, KN28520, KN28520N, KN28520X, N30108AH, N30108BF |
| N/A | AE78887, A78887X, A78887, 110412, 9732980140, EM-36380, P-67595, 700-17-261, 458689C91, 14036, 30069, U55 KN28520X, S-6029, 3-9350-034, WAKN28520, 67595, 932027, RB-28520, 401182 |
| NAPA | 67595, KN28520N |
| Navistar | 458689C91, 459790C91, KN28520X, ZZKN28520X |
| PAI | EM-36380, LRV-3638 |
| Prior | A78887, A97927 |
| RANGER BRAKE | RB-28520 |
| RYDER FLEET PROD. | U55 KN28520X |
| Ryder | U55 KN28520X |
| S&S Truck Parts | S-6029 |
| Sealco | 110412 |
| Spicer | P-67595 |
| TECTRAN | 14036 |
| TORQUE PARTS | TRKN28520 |
| Trailmobile | 700-17-261 |
| Tramec Sloan | 401182 |
| Utility Trailer Manufacturing | 3-9350-034 |
| WABCO | RKN28520, R955KN28520 |
| Wagner | 932027, A78887, A97927, A97927-001, AE78887, AE78887-001, AE88858 |
| World American | WAKN28520 |
HALDEX KN28520 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX KN28520 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX KN28520 Questions & Answers
No questions yet
Be the first to ask a question about this product!
