(888) 312-8812 Login SignupHALDEX KN25110 Air Brake Reservoir Check Valve - Shuttle Type Two-Way, 3/8" NPT Female
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
HALDEX KN25110 Part Description
Manufacturer
Product Description

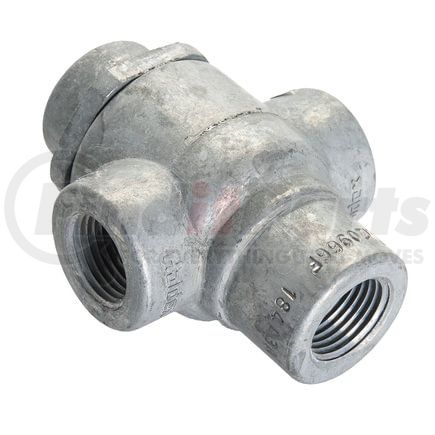

Shuttle Type Two-Way Check Valve
Features & Benefits
- Designed as a shuttle-type two-way check valve
- Should be mounted horizontally
- Can be interchanged with most competitive models
- Must be used when two valves should independently control or supply one system
Haldex Air Brake Check Valve
Equip your air brake system with a highly reliable check valve like the Haldex air brake check valve. Manufactured by a brand with over 100 years of engineering experience, this valve is designed to meet or exceed OEM standards for superior durability and performance.
HALDEX KN25110 Specifications
Product Attributes
| Freight Class | 70 |
| Inlet Port A | 3/8" NPT (female) |
| Outlet Port C | 3/8" NPT (female) |
| Outlet Port D | 3/8" NPT (female) |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653010502 |
| VMRS Code | 013010013 |
HALDEX KN25110 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 1650700, 12215, 278598, 7200, 276728, 9340990070, EM-40710, 5K4981, 843-031747, 2781822, P-67717, 1039307, 10502152, D0HA2B279A, 196255R92, 90001267, 802127, 1002239, 6814310107, K295-141, U55 KN25110, 550107, 72404-0002, 67717, AC36709 |
| Haldex | 1650700 |
| Midland | 12215, A43912, A76150, AC43912, AD40522, AD42122, KN25010, KN25110, KN25132, N15696S, N20566R, N20954D, N20954X, N20966AF, N20966C, N20966F, N20966H, N20966K, N20966R |
| Prior | 278598 |
| Sealco | 7200 |
| Bendix | 276728, 278598, 280809, 283477, 286450, 286453, 286704, 287626, 287627 |
| Meritor | 9340990070, 9340990120, 9340990210, RKN25110, RN20966F, RN20966R |
| PAI | EM-40710 |
| Bepco | 278598 |
| Berg Manufacturing | 12215, 1650700 |
| Caterpillar | 5K4981 |
| Central Power Products | 843-031747, 843-034560 |
| Clark Equipment | 2781822 |
| Dana Commercial Vehicle Service Parts | P-67717 |
| Elgin Sweeper | 1039307 |
| GMC | 10502152, 688288 |
| Ford | D0HA2B279A, D0HZ2575A |
| Navistar | 196255R92, 343821C91, 343823C91, 343823C92, 990078C91, 990080C91, PB2007, ZZKN25110 |
| Ottawa | 90001267 |
| Paccar Parts | 802127, K295-142 |
| Trackmobile | 1002239 |
| Freightliner | 6814310107, MIDN20966R |
| Kenworth | K295-141, K295-142 |
| Ryder | U55 KN25110 |
| Pierce Mfg Inc | 550107 |
| Volvo GM Heavy Truck | 72404-0002, 72404-0006 |
| NAPA | 67717 |
| Wagner | AC36709, AC36709-001, AD32940, AD42122, AD43912, AD76150 |
| MIDLAND | 12215, A43912, A76150, AC43912, AD40522, AD42122, KN25010, KN25110, KN25132, N15696S, N20566R, N20954D, N20954X, N20966AF, N20966C, N20966F, N20966H, N20966K, N20966R |
| PRIOR | 278598 |
| SEALCO | 7200 |
| BENDIX | 276728, 278598, 280809, 283477, 286450, 286453, 286704, 287626, 287627 |
| MERITOR | 9340990070, 9340990120, 9340990210, RKN25110, RN20966F, RN20966R |
| BERG | 12215, 1650700 |
| CENTRAL POWER PRODUCTS | 843-031747, 843-034560 |
| DANA | P-67717 |
| FORD | D0HA2B279A, D0HZ2575A |
| NAVISTAR | 196255R92, 343821C91, 343823C91, 343823C92, 990078C91, 990080C91, PB2007, ZZKN25110 |
| TRACKMOBILE | 1002239 |
| FREIGHTLINER | 6814310107, MIDN20966R |
| RYDER FLEET PROD. | U55 KN25110 |
| WAGNER | AC36709, AC36709-001, AD32940, AD42122, AD43912, AD76150 |
HALDEX KN25110 Cross References
We have 4 alternatives for the KN25110 by HALDEX:
HALDEX KN25110 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX KN25110 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
