(888) 312-8812 Login SignupHALDEX KN20541 H VALVE
Tap to view 2 more
$13849
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
HALDEX KN20541 Part Description
Manufacturer
Product Description

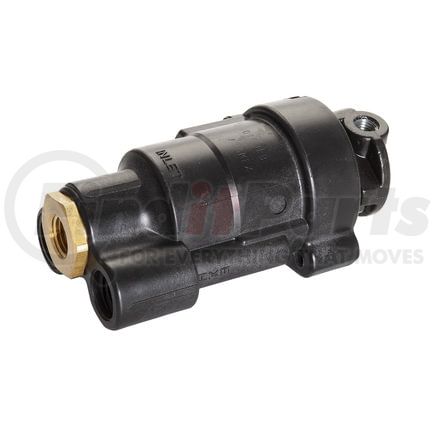

In-Column Mount Trailer Brake Control
Application Summary
Holding
Features & Benefits
- A highly reliable in-column mount trailer brake control valve
- Made of Engineering Grade Composite (EGC) that is proven tough, light, and corrosion resistant
- For this valve, handle applies 50° maximum
- Comes with push-to-connect (PTC) fittings for nylon tubing
- Does not include a handle and a knob
Haldex Hand Operated Valve
The Haldex hand operated valve enables the user to manually reduce incoming pressure to the desired output pressure. Manufactured by a brand with over 100 years of engineering expertise, this hand control valve delivers superior performance, reliability, and efficiency.
HALDEX KN20541 Specifications
Product Attributes

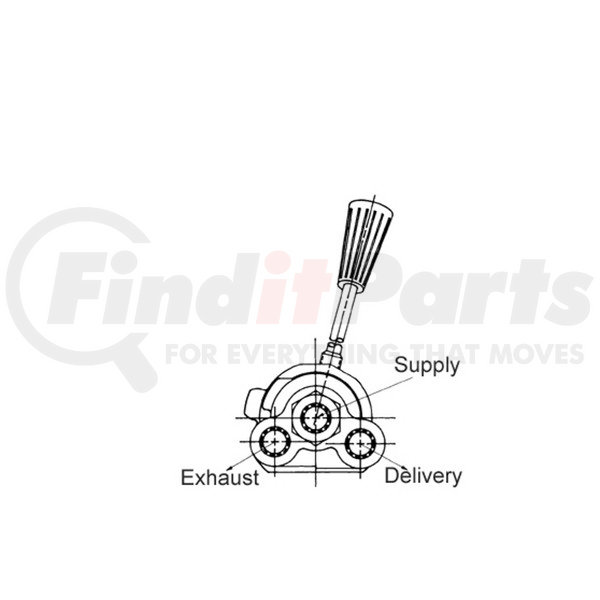

| Delivery Port Diameter | 1/4 in. |
| Exhaust Port Diameter | 1/4 in. |
| Freight Class | 70 |
| Supply Port Diameter | 1/4 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653010014 |
| VMRS Code | 013010014 |
HALDEX KN20541 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | E-BN101860X, KN20548, KN20540, 101860, 9617990050, P-67737, 8161186, 1620284C91, 20QE3218M, MIDN30103BN, U55 KN20541, S-A140, N30103BC, 67737 |
| Euclid | E-BN101860X |
| Haldex | KN20548 |
| Midland | KN20540, KN20541, KN20551, N30103, N30103AA, N30103BA, N30103BB, N30103BC, N30103BG, N30103BN, N30103BP, NA30103 |
| Prior | 101860, N30103BB |
| Bendix | 101860, 101910, 102388, 102705, 102706, 102707, 102708, 108089, 109260, 120708 |
| Meritor | 9617990050, 9617990090, 9677990160, RKN20541, RKN20551, RN30103BA |
| Dana Commercial Vehicle Service Parts | P-67737 |
| Volvo | 8161186 |
| Navistar | 1620284C91, 2019809C91, 476356C91, 476356C92, 594574C91, 598450C92, 990687C91, 990688C91, ZZKN20541 |
| Mack | 20QE3218M, 20QEX430R, 5396-KN20541 |
| Freightliner | MIDN30103BN |
| Ryder | U55 KN20541 |
| S&S Truck Parts | S-A140 |
| Lift Parts | N30103BC |
| NAPA | 67737 |
| EUCLID | E-BN101860X |
| MIDLAND | KN20540, KN20541, KN20551, N30103, N30103AA, N30103BA, N30103BB, N30103BC, N30103BG, N30103BN, N30103BP, NA30103 |
| PRIOR | 101860, N30103BB |
| BENDIX | 101860, 101910, 102388, 102705, 102706, 102707, 102708, 108089, 109260, 120708 |
| MERITOR | 9617990050, 9617990090, 9677990160, RKN20541, RKN20551, RN30103BA |
| DANA | P-67737 |
| VOLVO | 8161186 |
| NAVISTAR | 1620284C91, 2019809C91, 476356C91, 476356C92, 594574C91, 598450C92, 990687C91, 990688C91, ZZKN20541 |
| FREIGHTLINER | MIDN30103BN |
| RYDER FLEET PROD. | U55 KN20541 |
| MACK | 20QE3218M |
HALDEX KN20541 Cross References
We have 7 alternatives for the KN20541 by HALDEX:
HALDEX KN20541 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX KN20541 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
