Name: Haldex GP3030K GoldSeal Spring Brake - Piggyback, 3030 (Service Chamber Size), 2.5 in. Stroke Length
SKU: gp3030k
Price: 85.49 USD
Availability: InStock

HALDEX part description

Product Description

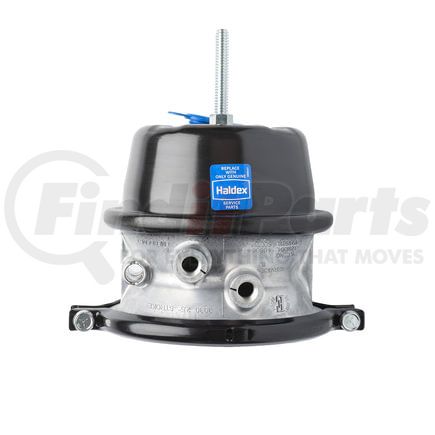

Brake Chamber GoldSeal 3030Gp Standard Stroke

Application Summary

Piggyback Kit - Size 3030

Features & Benefits

Uses superior power spring technology for unparalleled force output consistency
Has powder-coated housing that effectively resists fatigue and corrosion
Comes with two O-rings for positive sealing and plastic bearings for extended life
World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
With rugged powder-coated service housing for corrosion protection
Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
Self-piloting dust shield extends air brake system lifespan
Comes in a variety of sizes to fit all drum brake applications

Haldex GoldSeal Air Brake Spring Brake

Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.

Product Attributes

Freight Class	70
Piggyback Length	6.8 in.
Series	GoldSeal
Service Chamber Size	30/30
Service Clampband Size	10.2 in.
Spring Housing Flange Size	8.3 in.
Stroke Length	2.5 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8412310080
Harmonized Tariff Code (HTS)	8412310080
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653298214
VMRS Code	013004001

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX GP3030K Cross Reference

We have 3 alternatives for the GP3030K by HALDEX:
