Name: Euclid E5764L STUD
SKU: e5764l
Price: 102.45 USD
Availability: InStock

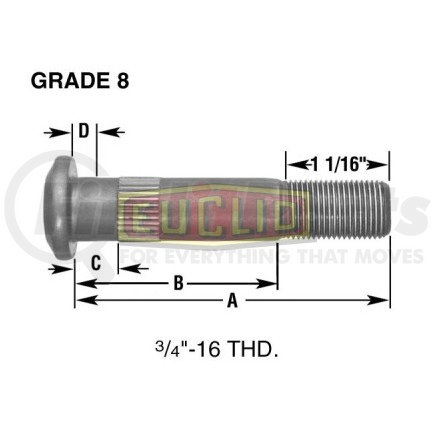

EUCLID part description

Wheel End Hardware - Wheel Stud, Single End, LH

Product Description

STUD

Product Attributes

Body Diameter	0.808 in./0.786 in.
Body Length	0.985 in.
Brand	Euclid
Drum Shoulder Diameter	0.808 in.
Drum Shoulder Length	0.19 in.
Grade	8
Head Diameter	1.28 in.
Head Style	Round
Head Thickness	0.31 in.
Length From Under Head	2 3/8 in.
Metric Thread Size	3/4-16 UNF-2A
Notes	Stepped Body Diameter
OEM	Budd 90554
Pallet Quantity	550
Serration	Serrated
Serration Diameter	0.820 in.
Serration Length	0.485 in.
Thread	3/4"-16
Thread Diameter	0.75 in.
Thread Direction	LH
Thread Length	1.00 in.
Threads Per Inch	16
Type	Headed w/Drum Shoulder
Weight	.40

EUCLID E5764L Cross Reference

We have 6 alternatives for the E5764L by EUCLID:

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
