EUCLID part description

Application For Aluminum Hubs
Body Diameter 0.874 in.
Body Length 1.05 in.
Grade 8
Head Diameter 1.31 in.
Head Style Clipped
Head Thickness 0.32 in.
Length from Under Head 2 1/4 in.
Metric Thread Size 3/4-16 UNF-2A
OEM Meritor 20-X-656; Budd 40336; Gunite 20048; Nav 69328R2; Ford 51-1107; Kelsey K-20048; Dodge 1272772
Serration Plain
Thread 3/4/2016
Thread Diameter 0.75 in.
Thread Direction RH
Thread Length 1.06 in.
Threads per Inch 16
Type Headed
VMRS Code 018-003-009

Product Description

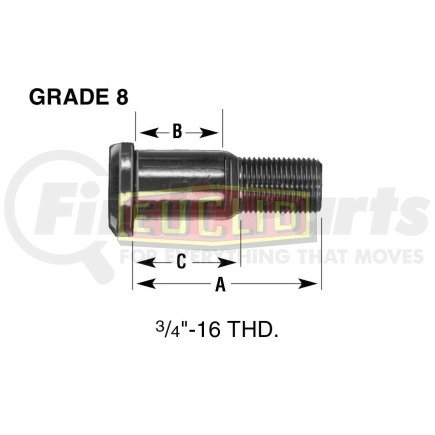

Euclid Wheel End Attaching Bolt

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
