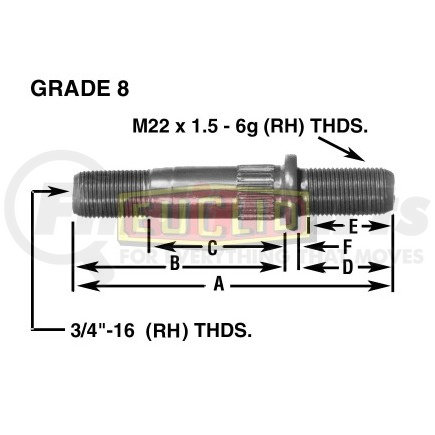

EUCLID part description

Body Diameter 0.781 in.
Body Length 1.64 in.
Collar Length 0.09 in.
Collar Style Round
Drum Shoulder Diameter 0.781 in.
Grade 10.9
Hub End Thread 3/4/2022
Hub End Thread Diameter 0.75 in.
Hub End Threads per Inch 16
Hub/Drum End Length 2.89 in.
Length 5 35/64 in.
Notes Metric Round Collar Shoulder
OEM Meritor 09-002073
Serration Serrated
Serration Diameter 0.810 in.
Serration Length 0.50 in.
Type Shoulder
VMRS Code 018-003-009
Wheel End Thread M22 x 1.5

Product Description

STUD

Product Attributes

Body Diameter 0.781 in.
Body Length 1.64 in.
Brand Euclid
Collar Length 0.09 in.
Collar Style Round
Drum Shoulder Diameter 0.781 in.
Grade 10.9
Hub End Thread 3/4"-22
Hub End Thread Diameter 0.75 in.
Hub End Threads Per Inch 16
Hub/drum End Length 2.89 in.
Length 5 35/64 in.
Notes Metric Round Collar Shoulder
OEM Meritor 09-002073
Pallet Quantity 550
Serration Serrated
Serration Diameter 0.810 in.
Serration Length 0.50 in.
Type Shoulder
Weight .55
Wheel End Thread M22 x 1.5

EUCLID E-11724 Cross Reference

We have 1 alternatives for the E-11724 by EUCLID:

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
