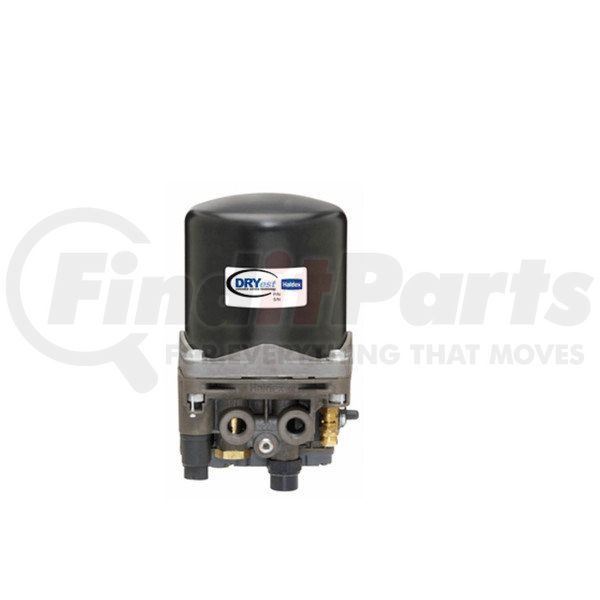

Haldex DA35220 - DRYest™ Air Brake Dryer - New, Without Heater, For use With External Purge Tank
$52799
MSRP: $1,381.72
Save: $853.73
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HALDEX part description
Product Description
DRYest™ Air Dryer
Features & Benefits
- Made with a multi-treatment cartridge that employs five stages of cleaning to ensure dry system air
- Offers ease of installation anywhere as it comes in an extra compact size
- An extended service air dryer specifically designed for system purge application
- Designed with a built-in heater to prevent dryer freezing and damage
- Built to offer integrated turbo protection
- Has an integrated muffler for superior quiet operation
Haldex DRYest™ Air Brake Dryer
Prevent air-line freeze-ups with the Haldex DRYest™ air brake dryer. Manufactured by a brand with more than 100 years of engineering expertise, this air dryer ensures only clean, dry air is being supplied to the air brake system as it helps filter most liquid and water vapor from the compressor discharge air.
Product Attributes
| Dessicant Cartridge Weight | 3.5 lbs. |
| Drying Capacity | 5.8 SCF |
| Drying Stages | 5 |
| Freight Class | 70 |
| Governor Cut-Out | 125 ± 5 PSI |
| Governor Included | Yes |
| Heater Included | No |
| Maximum Inlet Airflow | 35 SCFM |
| Maximum Working Pressure | 170 PSI |
| Minimum Working Temperature | -40°F |
| Mounting Bracket Included | Yes |
| New Or Remanufactured | New |
| Notes | For use With External Purge Tank |
| Pressure Drop | 35 SCFM/175 PSI = 3 PSI |
| Regeneration Valve System Purge Drain | Silencer |
| Safety Relief Pressure | 150 PSI |
| Series | DRYest™ |
| System Regeneration | No |
| Turbo Protection | 35 PSI Inlet Required |
| Wattage | 90 Watts |
Additional Information
| Country of Origin (Primary) | HU |
| Harmonized Tariff Code (Schedule B) | 8421398015 |
| Harmonized Tariff Code (HTS) | 8421398015 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653283142 |
| VMRS Code | 013010252 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX DA35220 Cross Reference
We have 2 alternatives for the DA35220 by HALDEX:
