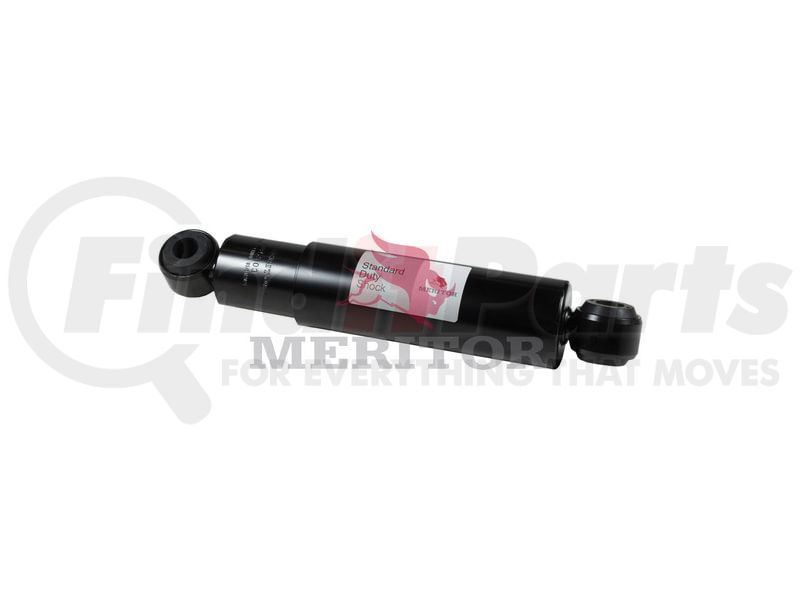

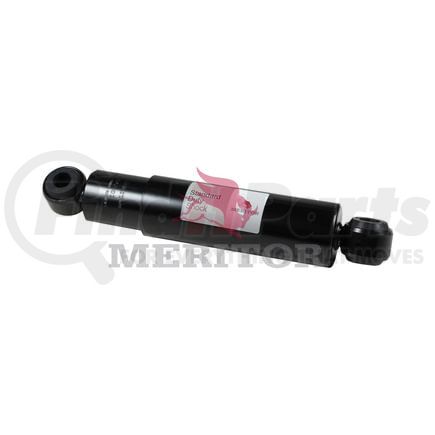

Meritor M85303 - Suspension Shock Absorber - 24.72" Extended Length, 9.17" Stroke, Standard
$7899
MSRP: $184.68
Save: $105.69
In stock
limited availability at this price!
. Learn more
MERITOR part description
| Body Diameter (in.) | 2.75 in. |
| Body Diameter (mm) | 69.9 mm |
| Bore (in.) | 1.63 in. |
| Bore (mm) | 41 mm |
| Collapsed Length (in.) | 15.46 in. |
| Collapsed Length (mm) | 392.8 mm |
| Dust Shield Diameter (in.) | 3.25 in. |
| Dust Shield Diameter (mm) | 82.5 mm |
| Extended Length (in.) | 24.74 in. |
| Extended Length (mm) | 628.4 mm |
| Family Code | 41FCHD |
| Hydraulic Stop | No |
| Stroke | 235.6 mm |
| Stroke Inch | 9.28 in. |
| Type | Standard |
| VMRS Code | 016-008-003 |
Meritor Shock Absorber
Meritor shock absorber is designed for exceptional day-in and day-out performance for trucks, trailers, and other types of heavy duty commercial vehicles. This shock provides better ride comfort, operational control, and cargo protection than what the competition has to offer.
Features & Benefits
- Advanced gas cell system reduces oil cavitation from heavy use, maximizing damping efficiency and extending shock life
- Hardened piston rod with polished chrome coating for superior corrosion resistance
- Made of premium materials to ensure reliable performance even under extreme conditions
Product Description
SHOCK ABSORBER
Product Attributes
| Body Diameter (in.) | 2.75 in. |
| Body Diameter (mm) | 70 mm |
| Bore (in.) | 1.97 in. |
| Bore (MM) | 50 mm |
| Brand | Meritor |
| Collapsed Length (in.) | 15.55 in. |
| Collapsed Length (mm) | 395 mm |
| Dust Shield Diameter (in.) | 3.15 in. |
| Dust Shield Diameter (mm) | 80 mm |
| Extended Length (in.) | 24.72 in. |
| Extended Length (mm) | 628 mm |
| Family Code | 41FCHD |
| Hydraulic Stop | No |
| Pallet Quantity | 105 |
| Stroke | 233 mm |
| Stroke Inch | 9.17 in. |
| Type | Standard |
| Weight | 10.45 |
MERITOR M85303 Cross Reference
We have 96 alternatives for the M85303 by MERITOR:
- MERITOR M89422
- MONROE 65116
- MONROE 74025
- MOTORCRAFT CAH-025
- MOTORCRAFT CAHL-400
- ACF BRILL BUS 659129
- BROCKWAY SCHOOL BUS 515231
- BUS&TRUCKCO. 680091
- BUS&TRUCKCO. 70039
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5552552
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 22012091
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5552452
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 3172948
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 3188729
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5353054
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5392387
- INTERNATIONAL (NAVISTAR) 453576C92
- INTERNATIONAL (NAVISTAR) 477132C1
- INTERNATIONAL (NAVISTAR) 426744R91
- INTERNATIONAL (NAVISTAR) 426744R92
- INTERNATIONAL (NAVISTAR) 453576C91
- MACK 14QK-29001P2
- MAECO 70018
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5534430
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5534447
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5554596
- CONTINENTAL TRAILWAYS-EAGLE INT'L 01-0100-905
- CONTINENTAL TRAILWAYS-EAGLE INT'L 680091
- CONTINENTAL TRAILWAYS-EAGLE INT'L 70039
- CRANE CARRIER 277A-8
- CRANE CARRIER 680091
- CROWN COACH 3188729
- EAGLE MOTOR COACH 01-0100-905
- EAGLE MOTOR COACH 680091
- EAGLE MOTOR COACH 70039
- GMC TRUCK 22012091
- GMC TRUCK 5552452
- MONROE 70039
- GMC TRUCK 3172948
- GMC TRUCK 3188729
- GMC TRUCK 5353054
- GMC TRUCK 5392387
- GMC TRUCK 5534430
- GMC TRUCK 5534447
- GMC TRUCK 5554596
- GREY HOUND BUS TA-01-013
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 5554596
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 680091
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 70018
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 70021
- HENDRICKSON TRUCK SUSPENSION SYSTEMS BE76164-2
- MAECO 70021
- MAECO 70039
- MAECO 74039
- MATSON SCHOOL BUS 5392387
- MOHAWK 01-0100-905
- MOTOR COACH INDUSTRIES 12T-1-13
- ORION BUS INDUSTRIES 680091
- OSHKOSH MOTORS 12405F-1
- OSHKOSH MOTORS 5353054
- OSHKOSH MOTORS 665040
- OSHKOSH MOTORS 690049
- OSHKOSH MOTORS 12405FX1
- OSHKOSH MOTORS 2173340
- OTTAWA TRUCK 9007342
- PREVOST 12T-1-13
- PREVOST 01-0100-905
- TRANSPORTATION MFG. CORP 12TA-01-13
- VOLVO 35901-3420
- VOLVO 5534430
- VOLVO 5534447
- VOLVO 1091374
- VOLVO 3172948
- WESTERN STAR 35901-3420
- MOTOR COACH INDUSTRIES 12TA-01-013
- KONI 90-1897
- FLEETRITE AMS650116
- FLEETRITE AMS700102
- DELCO 507-4
- TRUCKMASTER 680237
- GABRIEL 85303
- NAVISTAR 453576C92
- HENDRICKSON BE761642
- HALDEX SA65103
- GABRIEL 728607
- KONI 901897
- AUTOMANN A85303
- FLAGG 1617019000
- MARMON 5392387
- KONI 902209
- HENDRICKSON 5554596
- HALDEX SA65116
- HENDRICKSON 680091
- HALDEX SA74025
- HENDRICKSON 70018
- HENDRICKSON 70021
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
