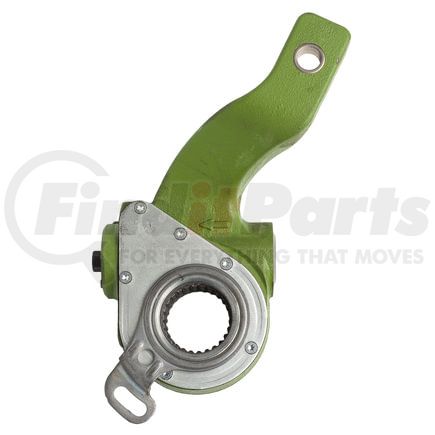

(888) 312-8812 Login SignupHALDEX 40979407 Air Brake Automatic Slack Adjuster - 6.5 Inch, N42 x 1.5 x 12H DIN 5480 Spline Diameter
$43449
Limited availability at this price!
2 Day Lead Time
Get it by Friday, Feb 6
HALDEX 40979407 Part Description
Manufacturer
Product Description
Automatic Brake Adjuster (ABA) Arm Length 165mm Offset 56.2mm
Features & Benefits
- Covers more applications than competing adjusters in the market
- Built-in installation indicator eliminates templates and assures proper installation
- Compatible with clevises from major OE and aftermarket brands
- Easily accessible hex nut simplifies adjustment
- Easily accessible hex nut for easy adjustment and maintenance
- Exclusive after-rolling process for the worm shaft increases fatigue strength.
- Specially-crafted wormshaft provides added resistance against fatigue
- Heat treated components reduce internal wear and provide longer service life
- Heavy duty gaskets and O-rings seal out moisture and contaminants
- Reliable O-rings and gaskets seal out moisture and contaminants
- Fully-sealed design protects linkages against the elements for added durability
- Severe Service Casting
- Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
- Heat-treated steel alloy internal gears provide increased strength and wear resistance
Haldex Automatic Brake Adjuster (ABA) Service Kit
Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.
HALDEX 40979407 Specifications
Product Attributes
| Arm Hole Diameter | 14 mm |
| Arm Length | 6-1/2 in. |
| Body Angle | 25 DD |
| Freight Class | 70 |
| Grease Fitting Location | 242 DD |
| Grease Fitting Type | Straight |
| Location | Rear |
| Offset | 56.2 mm |
| Spline Diameter | N42 x 1.5 x 12H DIN 5480 |
Additional Information
| Country of Origin (Primary) | HU |
| Harmonized Tariff Code (Schedule B) | 8708305090 |
| Harmonized Tariff Code (HTS) | 8708305090 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653306643 |
| VMRS Code | 013002035 |
HALDEX 40979407 Cross References
| Brand | Part Number |
|---|---|
| 013-002-028, HDX40979407 | |
| HALDEX | 40979407M1D |
| N/A | 409-79407, 5465303111 |
HALDEX 40979407 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX 40979407 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
