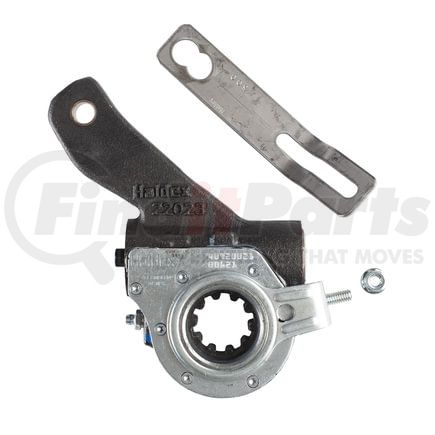

Name: Haldex 40020233 Air Brake Automatic Slack Adjuster - Rear, 6" Arm Length, 1.5" Spline Diameter, 10 Spline Count
SKU: 40020233
Price: 136.49 USD
Availability: InStock

HALDEX part description

Product Description

Auto Brake Adjuster Kit Truck/Trailer SABA Arm Length 6" Offset 0

Application Summary

Drive Axle Applications, standard

Features & Benefits

Covers more drum brake applications than competing adjusters in the market
With innovative self-setting flexible design that offers a free selection of control arm position and error-free installation
Made highly durable and with predictable performance
Rolled wormshaft provides added resistance against fatigue
Centralized clutch offers improved protection from moisture, dirt, and road salt
Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
High alloy steel internal gears provide increased strength and wear resistance
Heat-treated housing minimizes internal wear and extends service life
Offers ease of installation and improved performance

Haldex S-ABA Service Kit

Improve your ride’s stopping performance with the Haldex S-ABA service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.

Product Attributes

Anchor Bracket Style	Strap
Arm Hole Diameter	1/2 in.
Arm Length	6 in.
Body Angle	34 DD
Freight Class	70
Grease Fitting Location	180 DD
Grease Fitting Type	Straight
Location	Rear
Offset	0 in.
Pin Diameter	1/2 in.
Recommended Bracket Number	42710553
Spline Diameter	1-1/2 in.
Spline Quantity	10

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708305090
Harmonized Tariff Code (HTS)	8708305090
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653311906
VMRS Code	013002035

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX 40020233 Cross Reference

We have 2 alternatives for the 40020233 by HALDEX:
