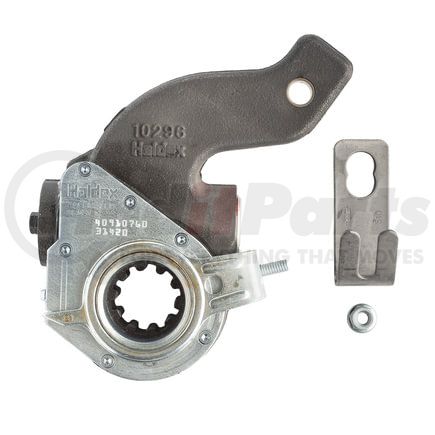

(888) 312-8812 Login SignupHALDEX 40010071 Air Brake Automatic Slack Adjuster - Rear, 5.5" Arm Length, 1.5" Spline Diameter, 10 Spline
MSRP: $361.17
$10549
Save $255.68
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 3
HALDEX 40010071 Part Description
Manufacturer
Product Description
Auto Brake Adjuster (ABA), Steer & Std App Arm Length 5-1/2" Offset 0
Application Summary
Steer Axle Applications, Standard Applications, Compatible with all major brand clevises
Features & Benefits
- Covers more applications than competing adjusters in the market
- Backed by the industry's longest warranty
- Compatible with clevises from major OE and aftermarket brands
- Built-in installation indicator eliminates templates, assures proper installation
- Easily accessible hex nut for easy adjustment and maintenance
- Control arm eliminates linkage concerns and provides greater application flexibility
- Specially-crafted wormshaft provides added resistance against fatigue
- Easily accessible hex nut simplifies adjustment
- Heavy duty gaskets and O-rings seal out moisture and contaminants
- Haldex automatic brake adjusters cover more applications than any other brand
- Fully-sealed design protects linkages against the elements for added durability
- Reliable O-ring and gaskets seal out moisture and contaminates
- Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
- Severe Service Casting
- Heat-treated steel alloy internal gears provide increased strength and wear resistance
Haldex Automatic Brake Adjuster (ABA) Service Kit
Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.
HALDEX 40010071 Specifications
Product Attributes
| Anchor Bracket Style | Strap |
| Arm Hole Diameter | 1/2 in. |
| Arm Length | 5-1/2 in. |
| Body Angle | 35 DD |
| Freight Class | 70 |
| Grease Fitting Location | 180 DD |
| Grease Fitting Type | Straight |
| Location | Rear |
| Pin Diameter | 1/2 in. |
| Recommended Bracket Number | 42710576 |
| Recommended Use | Steer Axle Applications |
| Spline Diameter | 1-1/2 in. |
| Spline Quantity | 10 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305090 |
| Harmonized Tariff Code (HTS) | 8708305090 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653143231 |
| VMRS Code | 013002035 |
HALDEX 40010071 Cross References
| Brand | Part Number |
|---|---|
| 013-001-030, HDX40010071 | |
| Eaton | 317167, 973802, 973803, 974483 |
| HALDEX | 40010071M1D, 40010071 |
| Haldex | 400-10071, 409-10760, 409-10817, 429-10760, 4NL-10071, 500-10071, 509-10370, 509-10760, 509-10817, 529-10760, 609-10760 |
| Mack | 25QD366 |
| Meritor | R802290, R802291, R802292, R802293, R802300, R802301, R802302, R802303, R802310, R802311, R802312, R802313, R802314, R802315, R802316, R802317, R802318, R802319, R802320, R802321, R802330, R802331, R802332, R802333 |
| Midland | 40010071, 409-10760 |
| N/A | 400-10071, 40010071, R802290, 317167, 20484490, 25QD366 |
| STEMCO | MK41100S |
| Volvo | 20484490 |
HALDEX 40010071 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX 40010071 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
