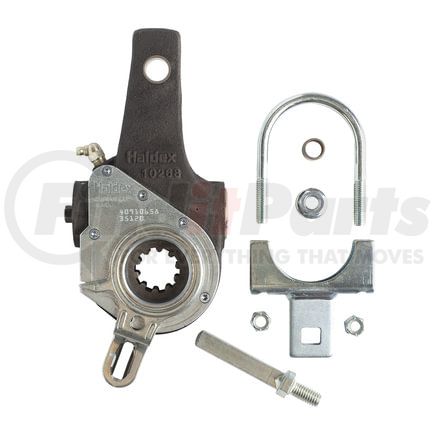

Haldex 40010001 - Air Brake Automatic Slack Adjuster - Rear, 5.5" Arm Length, 1.25" Spline Diameter, 10 Spline
$11849
MSRP: $208.39
Save: $89.90
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
HALDEX part description
Product Description
Auto Brake Adjuster (ABA), Steer Axle & Std App. Arm Length 5-1/2" Offset 0
Application Summary
Steer Axle Applications, Standard Applications, Compatible with all major brand clevises
Features & Benefits
- Covers more applications than competing adjusters in the market
- Compatible with clevises from major OE and aftermarket brands
- Easily accessible hex nut for easy adjustment and maintenance
- Specially-crafted wormshaft provides added resistance against fatigue
- Heavy duty gaskets and O-rings seal out moisture and contaminants
- Fully-sealed design protects linkages against the elements for added durability
- Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
- Heat-treated steel alloy internal gears provide increased strength and wear resistance
Haldex Automatic Brake Adjuster (ABA) Service Kit
Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.
Product Attributes
Anchor Bracket Style | Clamp |
Arm Hole Diameter | 5/8 in. |
Arm Length | 5-1/2 in. |
Body Angle | 0 DD |
Freight Class | 70 |
Grease Fitting Location | 242 DD |
Grease Fitting Type | 65° |
Location | Rear |
Pin Diameter | 5/8 in. |
Recommended Bracket Number | 42710566 |
Recommended Use | Steer Axle Applications |
Spline Diameter | 1-1/4 in. |
Spline Quantity | 10 |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708305090 |
Harmonized Tariff Code (HTS) | 8708305090 |
Remanufactured Part | N |
Warranty Distance | 100000 |
Warranty Distance UOM | MI |
Warranty Special | 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 00767653142869 |
VMRS Code | 013002035 |
Part Interchanges
- E-6900
- 400-10001
- 40010001
- R806009
- 315293
- 10-400-10001
- 1HB499
- 4W8085
- 90026401
- 02-01505
- 13002101
- Euclid E-6900
- Haldex 400-10001
- Midland 40010001
- Meritor R806009
- Eaton 315293
- Dana Commercial Vehicle Service Parts 10-400-10001
- Oshkosh 1HB499
- Mei 4W8085
- Ottawa 90026401
- Paccar Parts 02-01505
- Mckenzie Tank Lines 13002101
- EUCLID E-6900
- Euclid E-6900A
- Euclid E-6901
- Haldex 409-10224
- Haldex 409-10495
- Haldex 409-10658
- Haldex 500-10001
- Haldex 509-10224
- Haldex 509-10495
- Haldex 509-10658
- Haldex 609-10224
- Haldex 609-10495
- Haldex 609-10658
- MIDLAND 40010001
- MERITOR R806009
- Eaton 315309
- Eaton 808160
- Eaton 808695
- Eaton 808774
- Eaton 809774
- Eaton 811850
- Eaton 815795
- Eaton 815814
- Eaton 973644
- Eaton 974035
- DANA/SPICER BRAKE 10-400-10001
- MCKENZIE TANK LINES 13002101
- EUCLID E-6900A
- EUCLID E-6901
HALDEX 40010001 Cross Reference
We have 8 alternatives for the 40010001 by HALDEX:
