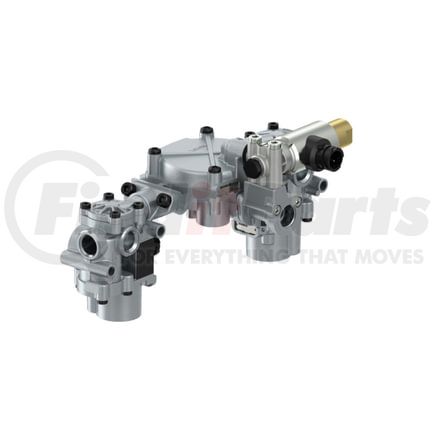

Name: WABCO 4725002270 ABS Modulator Valve - Axle Package
SKU: 4725002270
Price: 841.99 USD
Availability: InStock

WABCO part description

ABS Axle Package

Product Attributes

Electrical connection	DIN 72585-A1-3.1-Sn/K1, DIN 72585-A1-2.1-Sn/K1
Max. operating pressure	11.0 bar
Part Type	Premium original quality
Port thread 1	1/2 - 14 Dry Seal NPTF
Port thread 2	3/8 - 18 Dry Seal NPTF
Port thread 2.1	1/2 - 14 Dry Seal NPTF
Port thread 2.2	1/2 - 14 Dry Seal NPTF
Port thread 3	Exhaust
Port thread 4	1/4" - 18 Dry Seal NPTF
Product Category	Device
Protection class	IP66, IP69K
Response Pressure	0.28 bar
System	4S/4M, 6S/4M
Technical specification	OE specification
Temperature Range	-40°C to +80°C
Voltage	12 V

WABCO 4725002270 Cross Reference

We have 7 alternatives for the 4725002270 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
