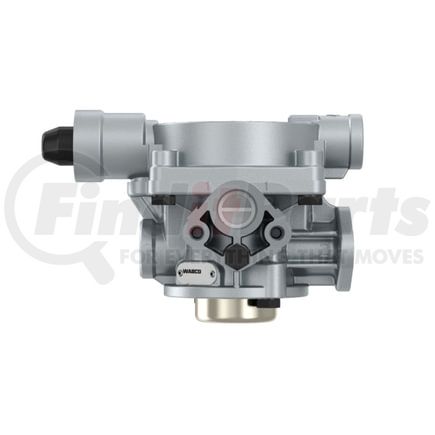

(888) 312-8812 Login SignupWABCO 9710021500 Air Brake Emergency Relay Valve
Tap to view 3 more
MSRP: $2,383.45
$1,72449
Save $658.96
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9710021500 Part Description
WABCO 9710021500 Specifications
Product Attributes
| Range Of Adjustment | 1 bar |
| Size | 184 x 126 x 121 |
| Max. operating pressure | 145.0 psi |
| Mounting | 2x Ø 11.0 mm |
| Calculated Volume (dm³) | 2.8053 |
| Port thread 2 | 2x M22 x 1.5 |
| Weight | 3.2232 |
| Port thread 3 | Flap Exhaust |
| Distance Between Holes | 71 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 12 | M22 x 1.5 |
| Adjustable Predominance | Adjustable: 0 to 1 bar |
| Type | Only Emergency valve |
| Port thread 4 | M22 x 1.5 |
| Temperature Range | -40°C to +80°C |
WABCO 9710021500 Cross References
| Brand | Part Number |
|---|---|
| MERITOR | S9710021500 |
| WABCO | S9710021500 |
WABCO 9710021500 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9710021500 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
