GATES TR22711 Part Description
Manufacturer
Product Description

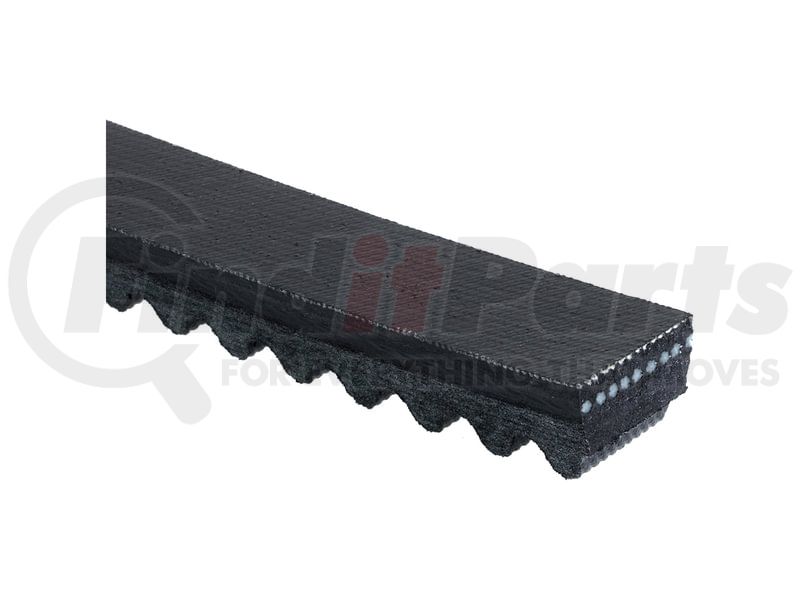

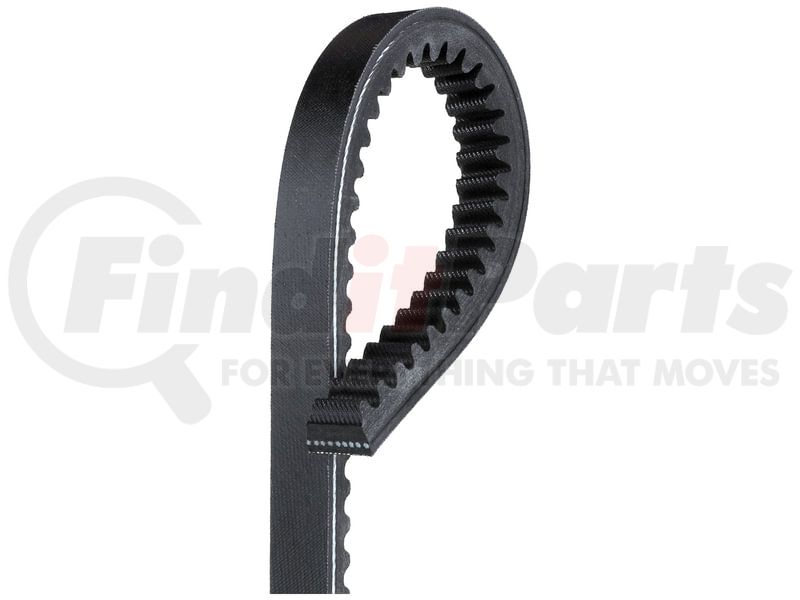

Green Stripe Truck & Bus Series V-Belt
Application Summary
Baker, B140PC, Volkswagen 4-Cyl., Trans.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR22711 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | RA |
| Angle | 40 |
| Strand Quantity | 1 |
| Top Width | .594 in |
| Outside Circumference | 71.61 in |
| Effective Length | 71.03 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 15 mm |
| Outside Circumference | 1819 mm |
| Effective Length | 1804 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | US |
| UPC | 00072053276879 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR22711 Part Interchanges
| Brand | Part Number |
|---|---|
| White | 10A573 |
| ACDelco | T22711 |
| Dayco | 420957 |
| BF Goodrich | 21722 |
| Carquest | TR22711 |
| Allis Chalmers | 1195451, 1306200, 81380029 |
| Bando | 5700 |
| Caterpillar | 3N8848, 4N8221, 5N3974, 5N3975, 7B7540, 9L6651, 9L6652 |
| Continental Belt | V277 |
| Cummins | 134812, 134821, 178612, 178621, 181380, S3129, S3175, 176767, 178610 |
| Epton | 21722 |
| Fleetrite | ZJG22720 |
| General Motors | 5122096, 5136262, 5188884, 9151954 |
| Ford | C7TS 8620 A, C7TS 8A615 A, C8HS 8620 E, C8HS 8A615 F |
| International Harvester (IHC) | 321001C1, 321001C11, 321001C12, 321001K11, 321991C12, 379261C91, 435519R11 |
| Komatsu | 690130C1 |
| Kysor | 300172, B1764571 |
| Mitsuboshi | MF8700, RECMF8700, REMF8700, RECMF8695, REMF8695 |
| Murphy | MD11744 |
| Steiger Tractor | 012059 |
| Waukesha | 75086B |
| Goodyear | 1084, 22710 |
| NAPA Belts/Hose | 25-22711 |
| Grumman Flxible | 104021, 104022, 104023 |
| MBL Three Stars | 22705 |
| NAPA | 25-17950, 25-18080 |
| Teledyne Continental | S820K316, 8749M215, S749M215 |
| <Unknown> | D44536, D56202, D56302 |
| Metric | 15A1795 |
GATES TR22711 Cross References
We have 1 alternatives for the TR22711 by GATES:
