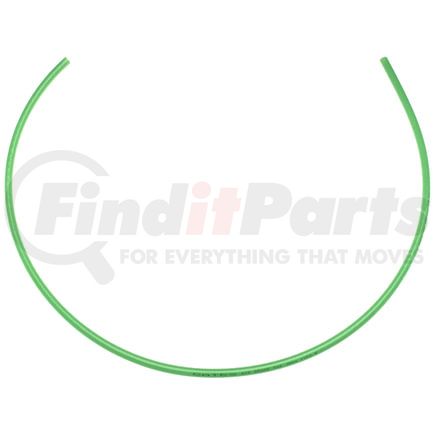

Gates H30042-04 - Nylon Air Brake Tubing (Nylon Tubing Compression)
$6149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Nylon Air Brake Tubing (Nylon Tubing Compression)
Features & Benefits
- For use with Gates DOT SureLok (G31 Series) or Gates DOT compression (G32 Series) couplings
- Heat- and light-stabilized seamless extruded nylon tube
- Nylon cover available in black (NABTA), blue (NABTB), green (NABTG), red (NABTR), yellow (NABTY) and orange (NABTO) colors. Other colors available upon request
- For straight cuts use Small Nylon Tube Cutter (Part Number 78015) reference in the Professional-Grade Tools Section
- Conforms to SAE J844 specifications. Meets D.O.T. FMVSS 106
- Temperature rating: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
- Type A: Non-reinforced in sizes 1/8 in., 5/32 in., 3/16 in., and 1/4 in. (use for service lines only)
- Type B: Reinforced with one open ply of fibrous nylon in sizes 5/16 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in.
- NOTE: Sizes 1/8 in. and 5/32 in. are NOT recognized by D.O.T. for air brake systems. These are for service lines only
Product Attributes
| Product Type | Nylon Tubing Compression Nylon Air Brake Tubing |
| Industrial Description | 4NABTG X100FT |
| Length | 100 FT |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 150 PS |
| Burst Pressure | 1204 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Outside Diameter | .25 IN |
| 9879 | 1 IN |
| Tube Description | Heat & Light Stabilized Seamless Extruded Nylon |
| Reinforcement Material | Type A - Non-Reinforced |
| Cover Material | Nylon |
| Cover Color | Green |
| 9856 | Gates DOT Compression, Gates DOT SureLok Couplings |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053681642 |
| VMRS Code | 059032033 |
| UNSPSC | 40142000 |
Part Interchanges
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
