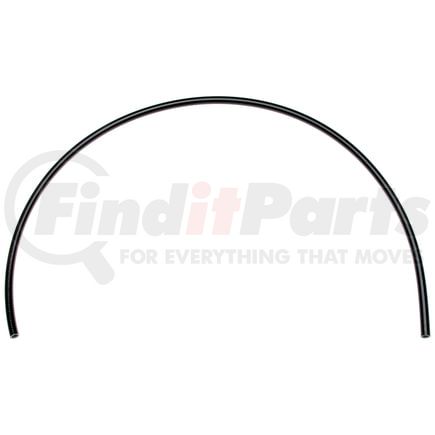

Name: Gates H30003-12 Nylon Air Brake Tubing (Nylon Tubing Compression)
SKU: h3000312
Price: 229.99 USD
Availability: InStock

GATES H30003-12 Part Description

Nylon Air Brake Tubing (Nylon Tubing Compression)

For use with Gates DOT SureLok (G31 Series) or Gates DOT compression (G32 Series) couplings
Heat- and light-stabilized seamless extruded nylon tube
Nylon cover available in black (NABTA), blue (NABTB), green (NABTG), red (NABTR), yellow (NABTY) and orange (NABTO) colors. Other colors available upon request
For straight cuts use Small Nylon Tube Cutter (Part Number 78015) reference in the Professional-Grade Tools Section
Conforms to SAE J844 specifications. Meets D.O.T. FMVSS 106
Temperature rating: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Type A: Non-reinforced in sizes 1/8 in., 5/32 in., 3/16 in., and 1/4 in. (use for service lines only)
Type B: Reinforced with one open ply of fibrous nylon in sizes 5/16 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in.
NOTE: Sizes 1/8 in. and 5/32 in. are NOT recognized by D.O.T. for air brake systems. These are for service lines only

GATES H30003-12 Specifications

Product Type	Nylon Tubing Compression Nylon Air Brake Tubing
Industrial Description	12NABTA X50FT
Length	50 FT
Hose Pressure Description	Low Pressure
Maximum Working Pressure	150 PS
Burst Pressure	798 PS
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Outside Diameter	.75 IN
Bend Radius	3 IN
Tube Description	Heat & Light Stabilized Seamless Extruded Nylon
Reinforcement Material	Type B - Reinforced w/ One Open Ply of Fibrous Nylon
Cover Material	Nylon
Cover Color	Black
Coupling Recommendation	Gates DOT Compression, Gates DOT SureLok Couplings

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	3917310000
UPC	00072053681635
VMRS Code	059032033
UNSPSC	40142000
