GATES H24100-08F Part Description
Manufacturer
Product Description

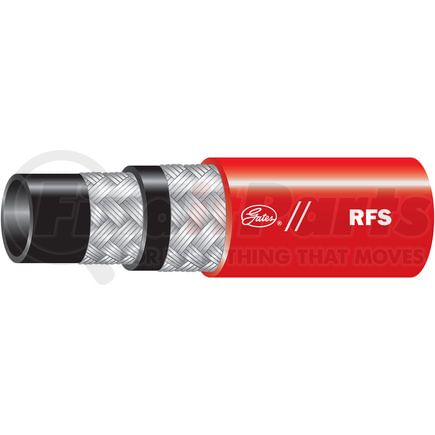

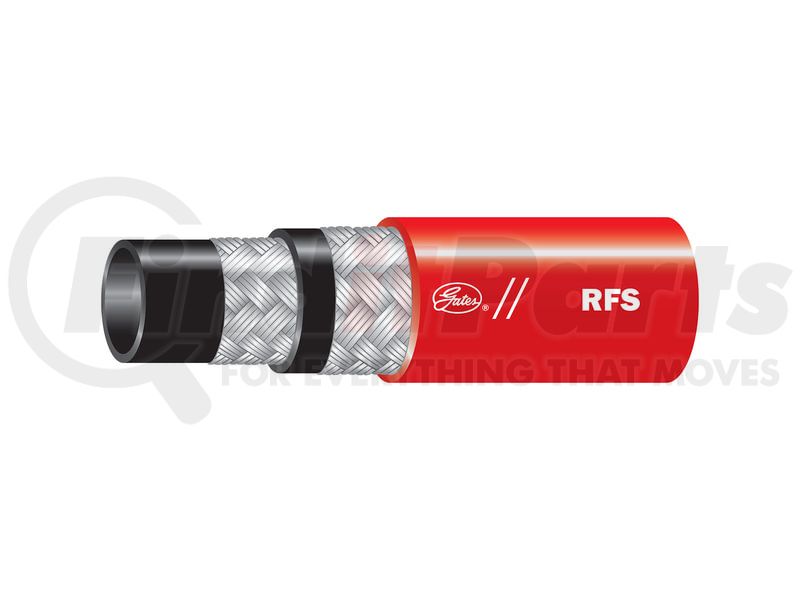

RFS Red Fire Suppressant Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Power Crimp Couplings
- The red cover is for easy visual identification in these applications
- Meets performance requirements of SAE 100R1 and meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES H24100-08F Specifications
Product Attributes
| Product Type | RFS Red Fire Suppressant Hose |
| Industrial Description | 8RFSXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 2000 PS |
| Burst Pressure | 8000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 330 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .80 IN |
| Bend Radius | 7 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Red |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R1 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053531879 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES H24100-08F Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | H24100-08F |
