GATES G43311-4848 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 67 1/2 Bent Tube (GL)
Features & Benefits
- Designed for larger-diameter hoses - up to 4 in. I.D.
- Designed for larger-diameter hoses – up to 4 in. I.D.
- Short body length provides the necessary grip for low pressure hose requirements
- Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
GATES G43311-4848 Specifications
Product Attributes
| Coupling Description | GL Code 61 O-Ring Flange - 67 1/2 Bent Tube |
| Industrial Description | 48GL-48FL67 |
| Inside Diameter | 3 IN |
| Hydraulic Hose Recommendation | Gates GMV, MegaTech G5TB, MegaTech 500 |

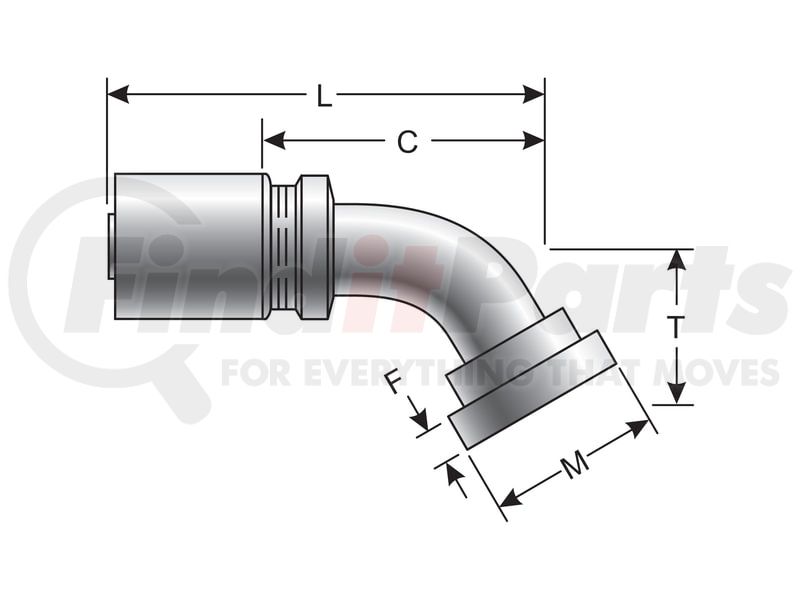

| Flange Thickness | .38 in |
| Flange Diameter | 4 IN |
| Drop Length | 3.87 IN |
| Cut-Off Length | 6.42 IN |
| Length | 9.5 IN |
| Inside Diameter | 76.2 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 101.6 MM |
| Drop Length | 98.3 MM |
| Cut-Off Length | 163.1 MM |
| Length | 241.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053189155 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G43311-4848 Cross References
| Brand | Part Number |
|---|---|
| NAPA | G43311-4848 |
