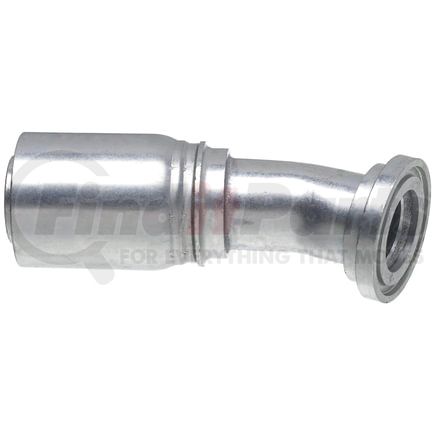

Gates G43302-2424 - Code 61 O-Ring Flange - 22 Bent Tube (GL)
$9599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 22 Bent Tube (GL)
Features & Benefits
- Designed for larger-diameter hoses - up to 4 in. I.D.
- Designed for larger-diameter hoses – up to 4 in. I.D.
- Short body length provides the necessary grip for low pressure hose requirements
- Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
Product Attributes
| Coupling Description | GL Code 61 O-Ring Flange - 22 Bent Tube |
| Industrial Description | 24GL-24FL22M-018 |
| Inside Diameter | 1.5 IN |
| 9952 | Gates GMV, MegaTech G5TB, MegaTech 500 |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | .71 IN |
| 9929 | 3.76 IN |
| Length | 6.39 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| 1874 | 18 MM |
| 9929 | 95.4 MM |
| Length | 162.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053776171 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
