(888) 312-8812 Login SignupGATES G34170-2020 Female JIC 37 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
Tap to view 3 more
$6799
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
GATES G34170-2020 Part Description
Manufacturer
Product Description

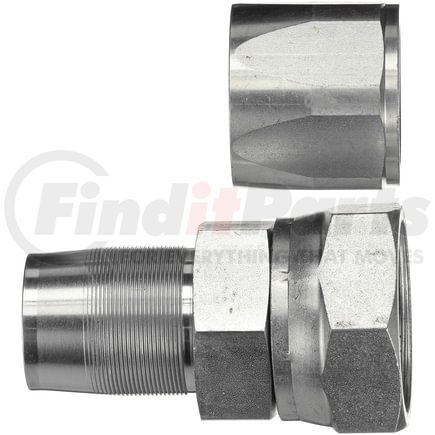

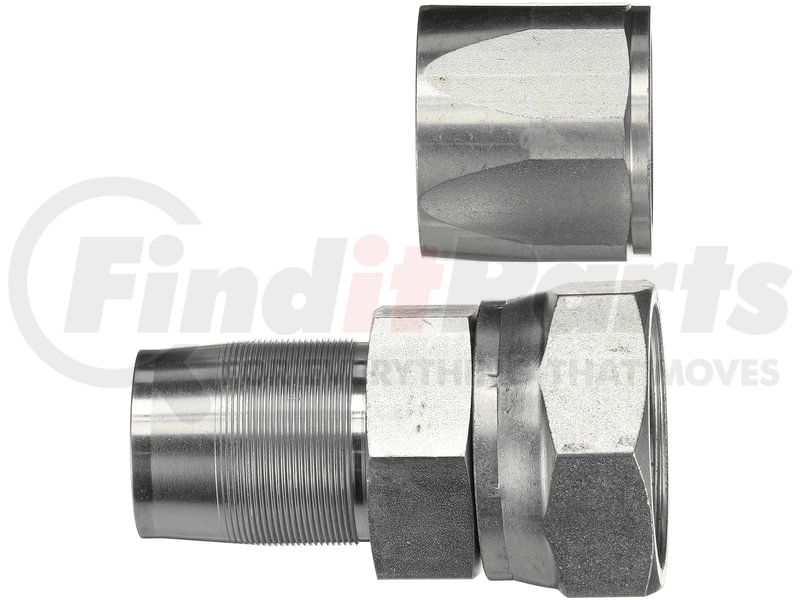

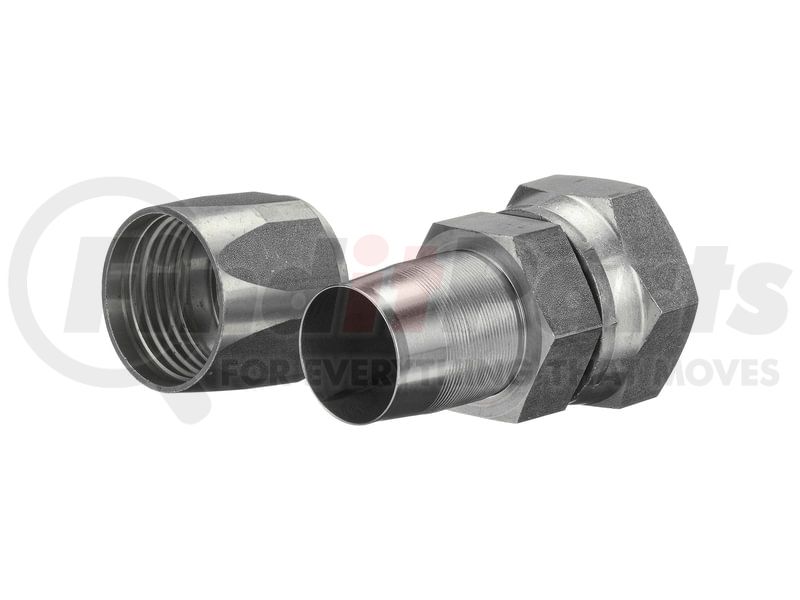

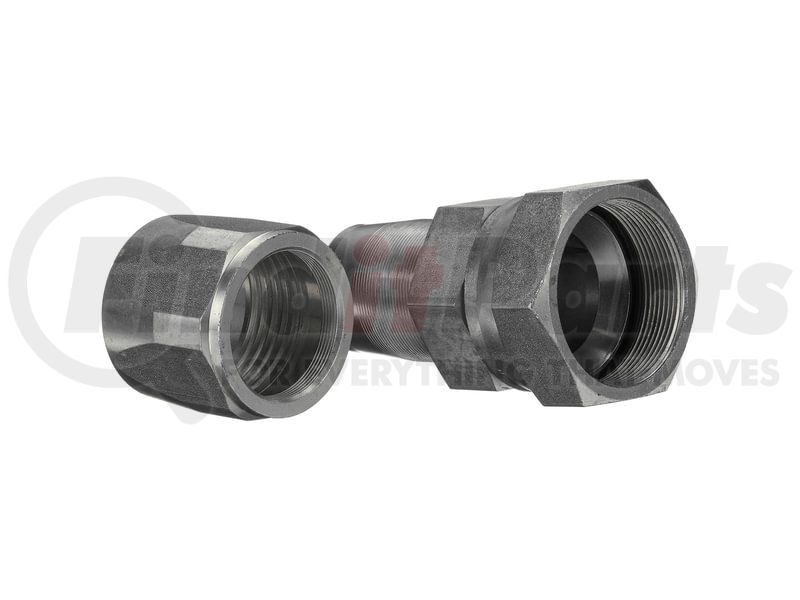

Female JIC 37 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
Features & Benefits
- Designed to perform with Gates C5 hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
GATES G34170-2020 Specifications
Product Attributes
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - Steel |
| Industrial Description | 20C5-20RFJX |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.125 IN |
| Hydraulic Hose Recommendation | Gates C5C, C5D, C5CHX, C5M |
| Stem Hex Size | 2 IN |
| Nut Hex Size | 2 IN |

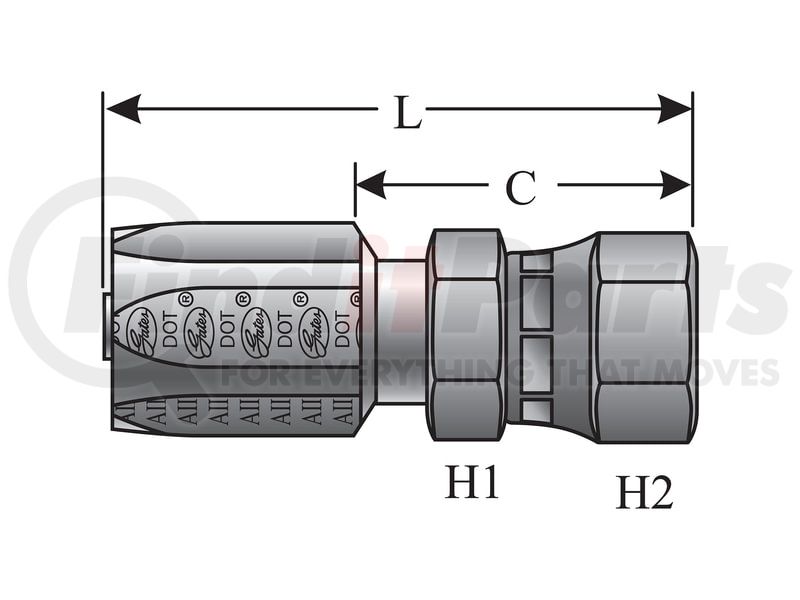

| Cut-Off Length | 2.19 IN |
| Length | 3.56 IN |
| Inside Diameter | 28.6 MM |
| Cut-Off Length | 55.6 MM |
| Length | 90.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053160512 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G34170-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 411-20S, 4411-20S |
| Goodyear | 18400-2020, FG-JCFX-2020 |
| NAPA | G34170-2020 |
| Parker | 20620-20-20 |
| Weatherhead | 06920D620 |
