(888) 312-8812 Login SignupGATES G34170-0606B Female JIC 37 Flare Swivel - Brass (C5CXH, C5C, C5D & C5M Hose)
Tap to view 1 more
$1849
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 16
GATES G34170-0606B Part Description
Manufacturer
Product Description

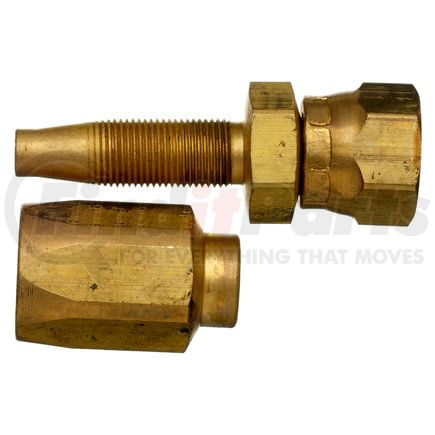

Female JIC 37 Flare Swivel - Brass (C5CXH, C5C, C5D & C5M Hose)
Features & Benefits
- Designed to perform with Gates C5 hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
GATES G34170-0606B Specifications
Product Attributes
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - Brass |
| Industrial Description | 6C5-6RFJXB |
| Thread Size | 9/16-18 |
| Inside Diameter | .3125 IN |
| Hydraulic Hose Recommendation | Gates C5C, C5D, C5CHX, C5M |
| Stem Hex Size | .75 IN |
| Nut Hex Size | .75 IN |
| Cut-Off Length | 1.44 IN |
| Length | 2.39 IN |
| Inside Diameter | 7.9 MM |
| Cut-Off Length | 36.6 MM |
| Length | 60.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7419995050 |
| UPC | 00072053828283 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G34170-0606B Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 411-6B |
| NAPA | G34170-0606B |
