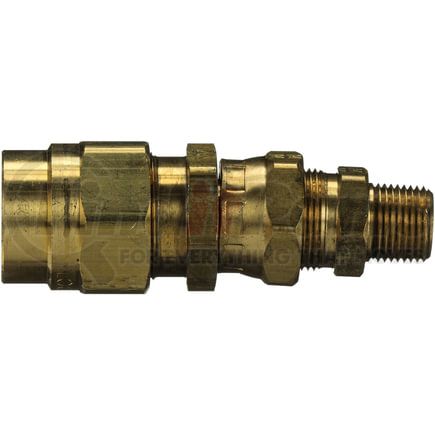

(888) 312-8812 Login SignupGATES G33151-0806 Air Brake to Female Air Brake Swivel with Adapter (Air Brake for Rubber Hose)
Tap to view 3 more
MSRP: $70.89
$4699
Save $23.90
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES G33151-0806 Part Description
Manufacturer
Product Description
Air Brake to Female Air Brake Swivel with Adapter (Air Brake for Rubber Hose)
Features & Benefits
- Many fittings can be detached and reattached
- Meet SAE J1402 and DOT FMVSS-106 requirements
- 225 PSI working pressure, 900 PSI burst pressure
GATES G33151-0806 Specifications
Product Attributes
| Coupling Description | Air Brake for Rubber Hose Air Brake to Female Air Brake Swivel w/ Adapter |
| Industrial Description | 8ABR-6FABX-6MPA |
| Thread Size | 3/8-18 |
| Inside Diameter | .375 IN |
| Length | 2.94 IN |
| Nut Hex Size | 1.125 IN |
| Maximum Working Pressure | 225 PS |
| Temperature Rating | -63 Deg. F to +250 Deg. F (-52 Deg. C to +121 Deg. C) |
| Material | 360 Brass |
| Inside Diameter | 9.7 MM |
| Length | 74.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200085 |
| UPC | 00029769205969 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G33151-0806 Part Interchanges
| Brand | Part Number |
|---|---|
| Velvac | 500094 |
| Anderson Fittings | 08086-0806 |
| NAPA | G33151-0806 |
| Tramec Sloan | S363RB-8 |
| Mid-America Fittings Inc | HE68S-86 |
GATES G33151-0806 Cross References
We have 1 alternatives for the G33151-0806 by GATES:
