(888) 312-8812 Login SignupGATES G31404-0404 Air Brake Union - 90 (SureLok)
Tap to view 3 more
MSRP: $27.26
$1599
Save $11.27
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES G31404-0404 Part Description
Manufacturer
Product Description

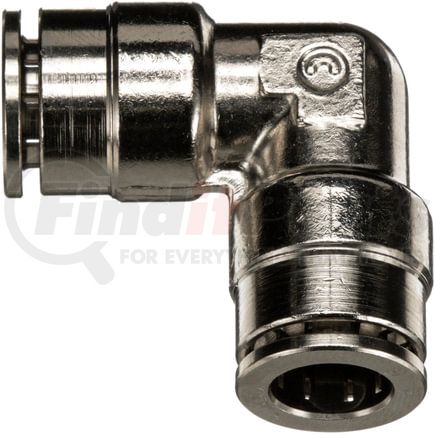

Air Brake Union - 90 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31404-0404 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake Union - 90 |
| Industrial Description | 4AB-4AB90 |
| Outside Diameter | .25 IN |
| Drop Length | .83 IN |
| Length | .83 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Drop Length | 21.1 MM |
| Length | 21.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| Country of Origin (Primary) | US |
| UPC | 00029769151938 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31404-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | 1865X4 |
| NAPA | G31404-0404 |
| IMI Norgren | 94 451 104 |
GATES G31404-0404 Cross References
We have 1 alternatives for the G31404-0404 by GATES:
